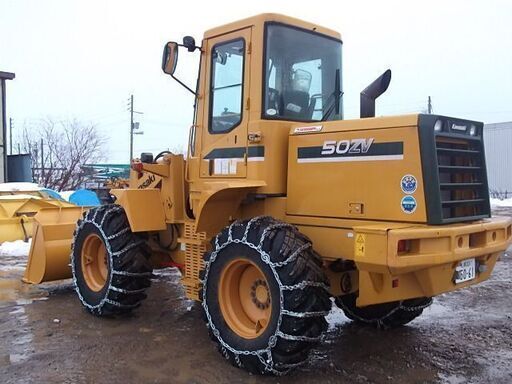

Kawasaki 50ZV
Browse All Kawasaki or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 8.98 ft in (2735 mm) |
| Bucket Capacity - Heaped | 1.84 yd3 (1.4 m3) |
| Bucket Capacity - Struck | 1.57 yd3 (1.2 m3) |
| Bucket Width | 7.71 ft in (2350 mm) |
| Breakout Force | 14330 lb (63.75 kN) |
Dimensions
| Ground Clearance | 1.33 ft in (405 mm) |
| Length With Bucket On Ground | 19.97 ft in (6085 mm) |
| Width Over Tires | 7.45 ft in (2270 mm) |
| Height To Top Of Cab | 10.22 ft in (3115 mm) |
| Wheelbase | 8.54 ft in (2600 mm) |
| Hinge Pin - Max Height | 11.49 ft in (3500 mm) |
| Reach At Max Lift And Dump | 3.15 ft in (960 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2347 |
| Engine Model | B4.5T |
| Net Power | 96 hp (71.6 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 304 lb ft (412.2 Nm) |
| Displacement | 274.4 cu in (4.5 L) |
| Torque Measured @ | 1500 rpm |
| Aspiration | natural |
Operational
| Operating Weight | 17504.8 lb (7940 kg) |
| Fuel Capacity | 31.8 gal (120 L) |
| Hydraulic System Fluid Capacity | 22.5 gal (85 L) |
| Engine Oil Fluid Capacity | 3 gal (11 L) |
| Cooling System Fluid Capacity | 10.5 gal (40 L) |
| Transmission Fluid Capacity | 5.3 gal (20 L) |
| Front Axle/Diff Fluid Capacity | 4.8 gal (18 L) |
| Rear Axle/Diff Fluid Capacity | 4.8 gal (18 L) |
| Static Tipping Weight | 14837.2 lb (6730 kg) |
| Turning Radius | 17.1 ft in (5185 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 50 amps |
| Rear Axle Oscillation | 24 degrees |
| Tire Size | 17.5x25-12PR (L-2) |
Transmission
| Transmission Type | full power shift |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 21.1 mph (34 km/h) |
| Max Speed - Reverse | 21.1 mph (34 km/h) |
Hydraulic System
| Relief Valve Setting | 3000 psi (20684.3 kPa) |
| Pump Flow Capacity | 27 gal/min (102.3 L/min) |
| Raise Time | 6 sec |
| Dump Time | 1.2 sec |
| Lower Time | 3 sec |
| Pump Type | gear type |
