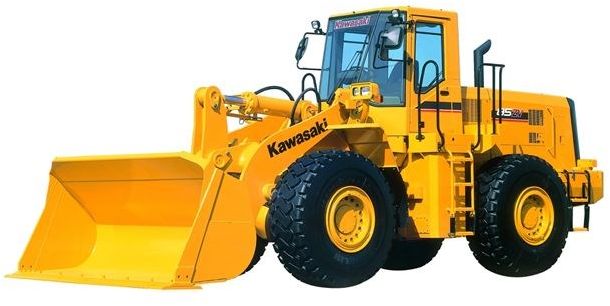

Kawasaki 85ZV-2
Browse All Kawasaki or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 10.47 ft in (3190 mm) |
| Bucket Capacity - Heaped | 4.84 yd3 (3.7 m3) |
| Bucket Capacity - Struck | 4.32 yd3 (3.3 m3) |
| Bucket Width | 10.18 ft in (3100 mm) |
| Breakout Force | 40680 lb (180.96 kN) |
Dimensions
| Ground Clearance | 1.71 ft in (520 mm) |
| Length With Bucket On Ground | 26.73 ft in (8145 mm) |
| Width Over Tires | 9.62 ft in (2930 mm) |
| Height To Top Of Cab | 11.6 ft in (3535 mm) |
| Wheelbase | 10.83 ft in (3300 mm) |
| Hinge Pin - Max Height | 14.15 ft in (4310 mm) |
| Reach At Max Lift And Dump | 3.37 ft in (1025 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2347 |
| Engine Model | QSC8.3 |
| Net Power | 224 hp (167.1 kw) |
| Gross Power | 240 hp (179 kw) |
| Power Measured @ | 1500 rpm |
| Max Torque | 764 lb ft (1035.9 Nm) |
| Displacement | 504 cu in (8.3 L) |
| Torque Measured @ | 2200 rpm |
| Aspiration | turbocharged |
Operational
| Operating Weight | 46275 lb (20990 kg) |
| Fuel Capacity | 79.3 gal (300 L) |
| Hydraulic System Fluid Capacity | 55.5 gal (210 L) |
| Engine Oil Fluid Capacity | 8 gal (30 L) |
| Cooling System Fluid Capacity | 15.9 gal (60 L) |
| Transmission Fluid Capacity | 14.1 gal (53 L) |
| Front Axle/Diff Fluid Capacity | 19.6 gal (74 L) |
| Rear Axle/Diff Fluid Capacity | 21.2 gal (80 L) |
| Static Tipping Weight | 35252 lb (15990.1 kg) |
| Turning Radius | 21.8 ft in (6635 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 70 amps |
| Rear Axle Oscillation | 22 degrees |
| Tire Size | 26.5x25-20PR (L-3) |
Transmission
| Transmission Type | full powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 22.2 mph (35.8 km/h) |
| Max Speed - Reverse | 22.7 mph (36.6 km/h) |
Hydraulic System
| Relief Valve Setting | 3000 psi (20684.3 kPa) |
| Pump Flow Capacity | 20.1 gal/min (76.1 L/min) |
| Raise Time | 6.3 sec |
| Dump Time | 1.3 sec |
| Lower Time | 4.2 sec |
| Pump Type | gear type |
