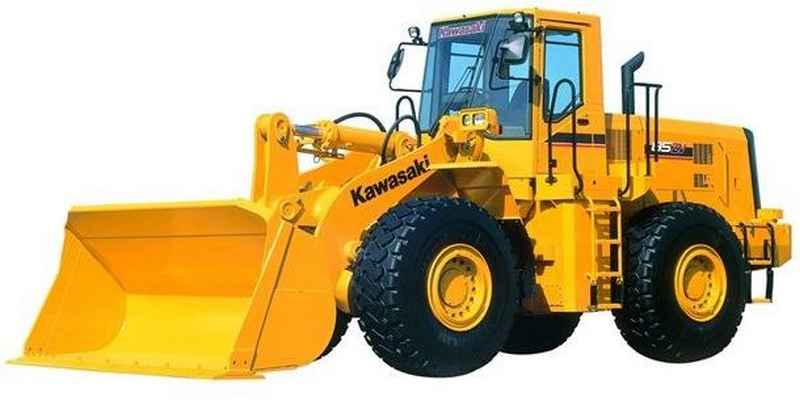

Kawasaki 90ZV
Browse All Kawasaki or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 10.27 ft in (3130 mm) |
| Bucket Capacity - Heaped | 5.24 yd3 (4 m3) |
| Bucket Capacity - Struck | 4.45 yd3 (3.4 m3) |
| Bucket Width | 10.18 ft in (3100 mm) |
| Breakout Force | 46300 lb (205.96 kN) |
Dimensions
| Ground Clearance | 1.69 ft in (515 mm) |
| Length With Bucket On Ground | 28.55 ft in (8700 mm) |
| Width Over Tires | 9.62 ft in (2930 mm) |
| Height To Top Of Cab | 11.6 ft in (3535 mm) |
| Wheelbase | 11.16 ft in (3400 mm) |
| Hinge Pin - Max Height | 14.31 ft in (4360 mm) |
| Reach At Max Lift And Dump | 3.88 ft in (1180 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2347 |
| Engine Model | QSM11 |
| Net Power | 275 hp (205.1 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 919 lb ft (1246 Nm) |
| Displacement | 660 cu in (10.9 L) |
| Torque Measured @ | 1400 rpm |
| Aspiration | turbocharged & intercooler |
Operational
| Operating Weight | 51323.7 lb (23280 kg) |
| Fuel Capacity | 87.2 gal (330 L) |
| Hydraulic System Fluid Capacity | 68.7 gal (260 L) |
| Engine Oil Fluid Capacity | 9 gal (34 L) |
| Cooling System Fluid Capacity | 15.9 gal (60 L) |
| Transmission Fluid Capacity | 15.9 gal (60 L) |
| Front Axle/Diff Fluid Capacity | 19.6 gal (74 L) |
| Rear Axle/Diff Fluid Capacity | 21.2 gal (80 L) |
| Static Tipping Weight | 39980.9 lb (18135 kg) |
| Turning Radius | 22.5 ft in (6840 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 75 amps |
| Rear Axle Oscillation | 24 degrees |
| Tire Size | 26.5x25-20PR (L-3) |
Transmission
| Transmission Type | full powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 21.1 mph (34 km/h) |
| Max Speed - Reverse | 21.7 mph (35 km/h) |
Hydraulic System
| Relief Valve Setting | 3000 psi (20684.3 kPa) |
| Pump Flow Capacity | 37.8 gal/min (143.1 L/min) |
| Raise Time | 6.1 sec |
| Dump Time | 1.6 sec |
| Lower Time | 3 sec |
| Pump Type | gear type |
