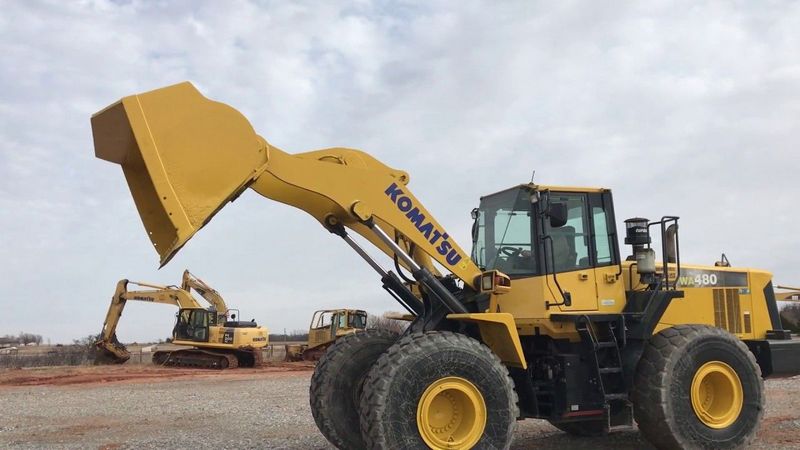

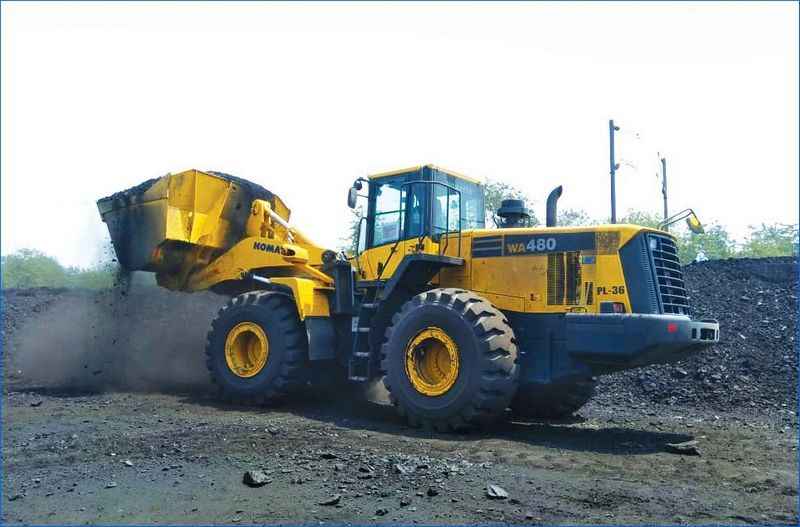

Komatsu WA480-6
Browse All Komatsu or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 10.5 ft in (3205 mm) |
| Breakout Force | 47660 lb (212 kN) |
| Bucket Capacity - Heaped | 6 yd3 (4.6 m3) |
| Bucket Capacity - Struck | 5.2 yd3 (3.98 m3) |
| Bucket Width | 10.42 ft in (3170 mm) |
Dimensions
| Ground Clearance | 1.75 ft in (525 mm) |
| Length With Bucket On Ground | 30.67 ft in (9345 mm) |
| Width Over Tires | 9.92 ft in (3010 mm) |
| Height To Top Of Cab | 11.5 ft in (3500 mm) |
| Wheelbase | 11.33 ft in (3450 mm) |
| Hinge Pin - Max Height | 14.75 ft in (4505 mm) |
Engine
| Number Of Cylinders | 12 |
| Engine Make | 2238 |
| Engine Model | SAA6D125E-5 |
| Net Power | 299 hp (223 kw) |
| Gross Power | 300 hp (224 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 674 cu in (11.1 L) |
| Aspiration | Turbo-charged |
Operational
| Operating Weight | 54510 lb (24725 kg) |
| Fuel Capacity | 109.1 gal (413 L) |
| Hydraulic System Fluid Capacity | 45.7 gal (173 L) |
| Engine Oil Fluid Capacity | 10 gal (38 L) |
| Cooling System Fluid Capacity | 16.1 gal (61 L) |
| Transmission Fluid Capacity | 14.3 gal (54 L) |
| Front Axle/Diff Fluid Capacity | 15.6 gal (59 L) |
| Rear Axle/Diff Fluid Capacity | 15.6 gal (59 L) |
| Static Tipping Weight | 45020 lb (20420 kg) |
| Turning Radius | 50.5 ft in (15400 mm) |
Transmission
| Transmission Type | full-powershift, countershaft type |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 21.4 mph (34.5 km/h) |
| Max Speed - Reverse | 22.1 mph (35.6 km/h) |
Hydraulic System
| Relief Valve Setting | 3555 psi (24510.9 kPa) |
| Pump Flow Capacity | 63.9 gal/min (242 L/min) |
| Raise Time | 7 sec |
| Dump Time | 1.9 sec |
| Lower Time | 3.8 sec |
| Pump Type | Double-acting, piston type |
