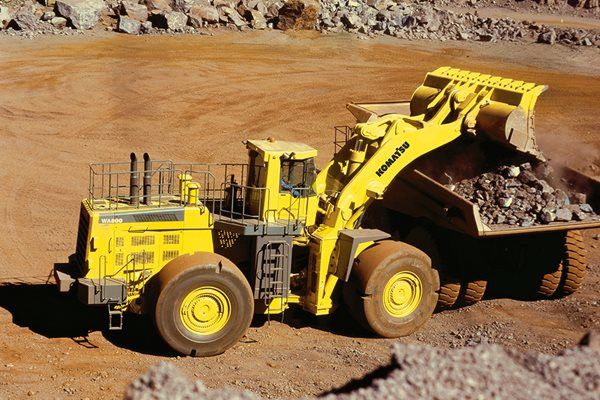

Komatsu WA800-3 Tier 2
Browse All Komatsu or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 15.2 ft in (4630 mm) |
| Bucket Capacity - Heaped | 14.39 yd3 (11 m3) |
| Bucket Capacity - Struck | 12.17 yd3 (9.31 m3) |
| Bucket Width | 15.79 ft in (4810 mm) |
| Breakout Force | 152120 lb (676.67 kN) |
Dimensions
| Ground Clearance | 1.81 ft in (550 mm) |
| Length With Bucket On Ground | 45.81 ft in (13960 mm) |
| Width Over Tires | 15.05 ft in (4585 mm) |
| Height To Top Of Cab | 17.31 ft in (5275 mm) |
| Wheelbase | 17.89 ft in (5450 mm) |
| Hinge Pin - Max Height | 22.27 ft in (6785 mm) |
| Reach At Max Lift And Dump | 7.83 ft in (2385 mm) |
Engine
| Number Of Cylinders | 12 |
| Engine Make | 2238 |
| Engine Model | SAA12V140E-3 |
| Net Power | 808 hp (602.6 kw) |
| Gross Power | 853 hp (636.1 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 1860 cu in (30.5 L) |
| Aspiration | Turbocharged and Aftercooled |
Operational
| Operating Weight | 224650 lb (101899.6 kg) |
| Fuel Capacity | 410.8 gal (1555.1 L) |
| Hydraulic System Fluid Capacity | 191.5 gal (725 L) |
| Engine Oil Fluid Capacity | 34.3 gal (129.9 L) |
| Cooling System Fluid Capacity | 89 gal (337 L) |
| Transmission Fluid Capacity | 37 gal (140.1 L) |
| Front Axle/Diff Fluid Capacity | 95.1 gal (360 L) |
| Rear Axle/Diff Fluid Capacity | 95.1 gal (360 L) |
| Static Tipping Weight | 134680 lb (61089.9 kg) |
| Turning Radius | 35.8 ft in (10900 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 90 amps |
| Rear Axle Oscillation | 22 degrees |
| Tire Size | 45/65-45-45 |
Transmission
| Transmission Type | Full-powershift |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 17.4 mph (28 km/h) |
| Max Speed - Reverse | 17.6 mph (28.3 km/h) |
Hydraulic System
| Relief Valve Setting | 4550 psi (31371.2 kPa) |
| Pump Flow Capacity | 107 gal/min (405.1 L/min) |
| Raise Time | 11.2 sec |
| Dump Time | 2 sec |
| Lower Time | 4.8 sec |
| Pump Type | Piston pump |
