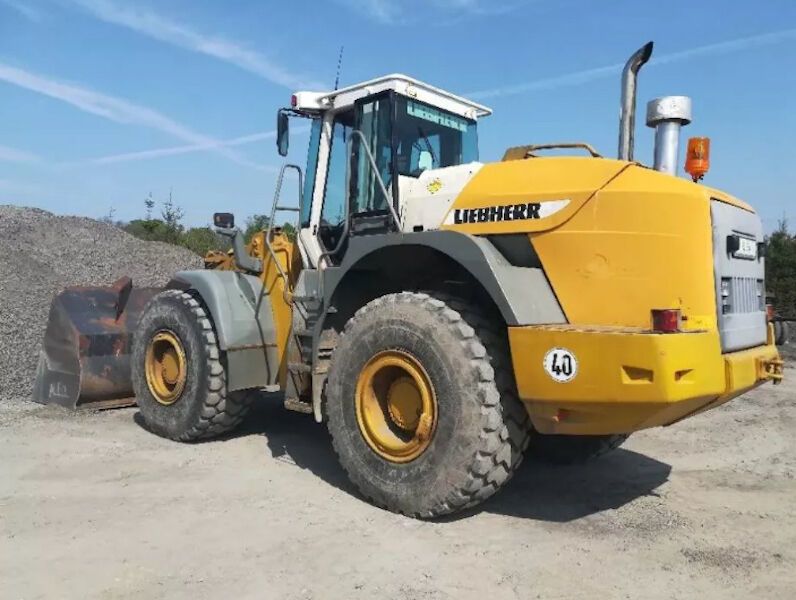

Liebherr L554 2plus2
Browse All Liebherr or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 10.13 ft in (3085 mm) |
| Bucket Capacity - Heaped | 4.58 yd3 (3.5 m3) |
| Bucket Width | 8.86 ft in (2700 mm) |
| Breakout Force | 29225.17 lb (130 kN) |
Dimensions
| Ground Clearance | 1.74 ft in (530 mm) |
| Length With Bucket On Ground | 26.68 ft in (8130 mm) |
| Height To Top Of Cab | 11.01 ft in (3355 mm) |
| Wheelbase | 10.34 ft in (3150 mm) |
| Hinge Pin - Max Height | 13.72 ft in (4180 mm) |
| Reach At Max Lift And Dump | 3.52 ft in (1070 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2245 |
| Engine Model | D 924 TI-E A2 |
| Gross Power | 198 hp (147.7 kw) |
| Power Measured @ | 2000 rpm |
| Max Torque | 591.6 lb ft (802 Nm) |
| Displacement | 405.2 cu in (6.7 L) |
| Torque Measured @ | 1200 rpm |
| Aspiration | Inline engine, water-cooled exhaust-turbo charged with intercooler |
Operational
| Operating Weight | 38140 lb (17300 kg) |
| Fuel Capacity | 68.7 gal (260 L) |
| Hydraulic System Fluid Capacity | 58.2 gal (220 L) |
| Engine Oil Fluid Capacity | 5.5 gal (20.5 L) |
| Front Axle/Diff Fluid Capacity | 13.5 gal (51 L) |
| Rear Axle/Diff Fluid Capacity | 7.4 gal (28 L) |
| Static Tipping Weight | 30699.4 lb (13925 kg) |
| Turning Radius | 20.9 ft in (6360 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 55 amps |
| Rear Axle Oscillation | 26 degrees |
| Tire Size | 23.5 R 25 |
Transmission
| Transmission Type | Stepless hydrostatic travel drive 2plus2 |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 24.9 mph (40 km/h) |
| Max Speed - Reverse | 24.9 mph (40 km/h) |
Hydraulic System
| Relief Valve Setting | 4786.3 psi (33000 kPa) |
| Pump Flow Capacity | 60.8 gal/min (230 L/min) |
| Raise Time | 5.5 sec |
| Dump Time | 2.3 sec |
| Lower Time | 2.7 sec |
| Pump Type | Load-sensing variable axial piston pump with output control and pressure cutoff |
