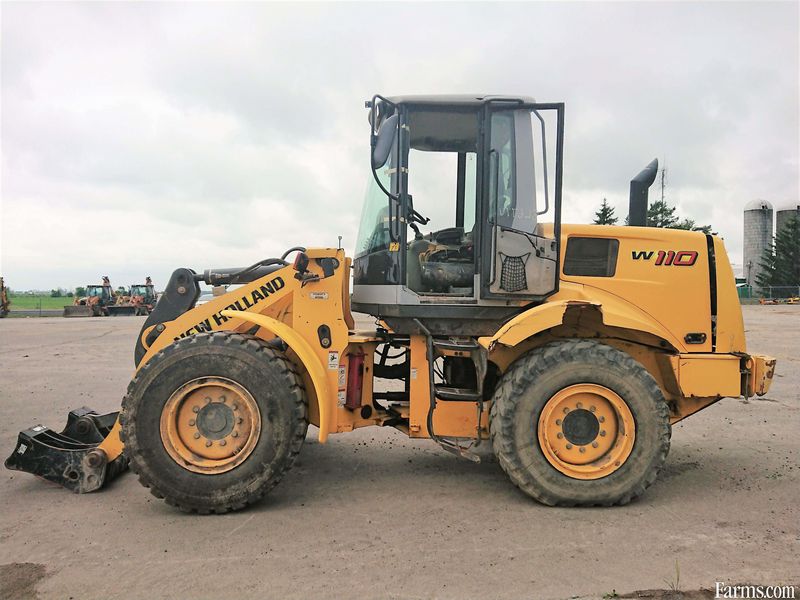

New Holland W110
Browse All New Holland or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.1 ft in (2773 mm) |
| Bucket Capacity - Heaped | 1.97 yd3 (1.5 m3) |
| Bucket Capacity - Struck | 1.71 yd3 (1.3 m3) |
| Bucket Width | 8.1 ft in (2468 mm) |
| Breakout Force | 17364 lb (77.24 kN) |
Dimensions
| Ground Clearance | 1.24 ft in (377 mm) |
| Length With Bucket On Ground | 21.54 ft in (6563 mm) |
| Width Over Tires | 7.58 ft in (2308 mm) |
| Height To Top Of Cab | 10.72 ft in (3267 mm) |
| Wheelbase | 9.03 ft in (2750 mm) |
| Hinge Pin - Max Height | 11.84 ft in (3608 mm) |
| Reach At Max Lift And Dump | 6.82 ft in (2077 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2249 |
| Engine Model | 445T/M2 |
| Net Power | 110 hp (82.1 kw) |
| Gross Power | 119 hp (88.8 kw) |
| Power Measured @ | 2000 rpm |
| Max Torque | 335 lb ft (454.2 Nm) |
| Displacement | 274.7 cu in (4.5 L) |
| Aspiration | Turbocharged & after cooled |
| Torque Rise | 14 % |
Operational
| Operating Weight | 23693.1 lb (10747 kg) |
| Fuel Capacity | 50 gal (189.3 L) |
| Hydraulic System Fluid Capacity | 30 gal (113.6 L) |
| Engine Oil Fluid Capacity | 12 gal (45.5 L) |
| Cooling System Fluid Capacity | 5.8 gal (22 L) |
| Transmission Fluid Capacity | 5 gal (19 L) |
| Front Axle/Diff Fluid Capacity | 23.2 gal (87.9 L) |
| Rear Axle/Diff Fluid Capacity | 23.2 gal (87.9 L) |
| Static Tipping Weight | 18633 lb (8451.8 kg) |
| Turning Radius | 16.2 ft in (4932 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 70 amps |
| Rear Axle Oscillation | 40 degrees |
| Tire Size | 17.5R25 L2/L3 |
Transmission
| Transmission Type | Countershaft, Power shift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 23.4 mph (37.7 km/h) |
| Max Speed - Reverse | 15.2 mph (24.5 km/h) |
Hydraulic System
| Relief Valve Setting | 2750 psi (18960.6 kPa) |
| Pump Flow Capacity | 35.4 gal/min (134.1 L/min) |
| Raise Time | 5.6 sec |
| Dump Time | 1.1 sec |
| Lower Time | 3.7 sec |
| Pump Type | Variable-Displacement, Piston Pump |
