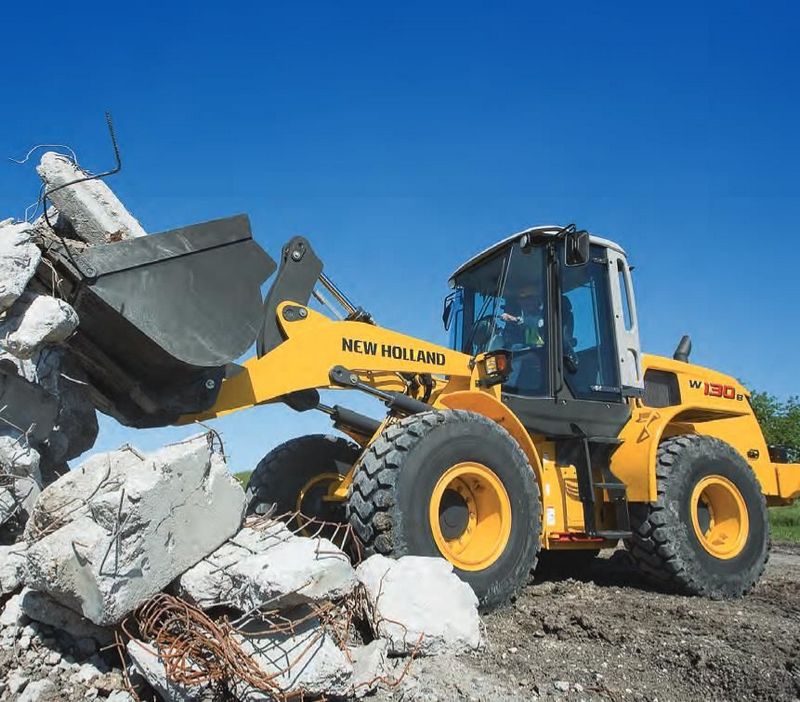

New Holland W130TC
Browse All New Holland or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.07 ft in (2762 mm) |
| Bucket Capacity - Heaped | 2.66 yd3 (2.04 m3) |
| Bucket Capacity - Struck | 2.29 yd3 (1.76 m3) |
| Bucket Width | 8.54 ft in (2602 mm) |
| Breakout Force | 23909 lb (106.36 kN) |
Dimensions
| Ground Clearance | 1.56 ft in (474 mm) |
| Length With Bucket On Ground | 23.93 ft in (7293 mm) |
| Width Over Tires | 7.82 ft in (2382 mm) |
| Height To Top Of Cab | 11.17 ft in (3404 mm) |
| Wheelbase | 9.52 ft in (2900 mm) |
| Hinge Pin - Max Height | 13 ft in (3961 mm) |
| Reach At Max Lift And Dump | 4.07 ft in (1239 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2249 |
| Engine Model | 668TA/M2 |
| Net Power | 136 hp (101.5 kw) |
| Gross Power | 148 hp (110.4 kw) |
| Power Measured @ | 1800 rpm |
| Max Torque | 509 lb ft (690.2 Nm) |
| Displacement | 411 cu in (6.8 L) |
| Torque Measured @ | 1200 rpm |
| Aspiration | Direct Injection, diesel |
| Torque Rise | 33 % |
Operational
| Operating Weight | 27711 lb (12569.5 kg) |
| Fuel Capacity | 50 gal (189.3 L) |
| Hydraulic System Fluid Capacity | 30 gal (113.6 L) |
| Engine Oil Fluid Capacity | 4 gal (15.1 L) |
| Cooling System Fluid Capacity | 6.3 gal (23.9 L) |
| Transmission Fluid Capacity | 5 gal (19 L) |
| Front Axle/Diff Fluid Capacity | 5.9 gal (22 L) |
| Rear Axle/Diff Fluid Capacity | 5.9 gal (22 L) |
| Static Tipping Weight | 20290 lb (9203.4 kg) |
| Turning Radius | 17 ft in (5175 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 70 amps |
| Rear Axle Oscillation | 24 degrees |
| Tire Size | 20.5R25(L3) |
Transmission
| Transmission Type | Countershaft, Power shift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 24 mph (38.7 km/h) |
| Max Speed - Reverse | 15.6 mph (25.2 km/h) |
Hydraulic System
| Relief Valve Setting | 3625 psi (24993.5 kPa) |
| Pump Flow Capacity | 45.2 gal/min (171.2 L/min) |
| Raise Time | 5.4 sec |
| Dump Time | 1.5 sec |
| Lower Time | 5 sec |
| Pump Type | Variable-Displacement, Piston Pump |
