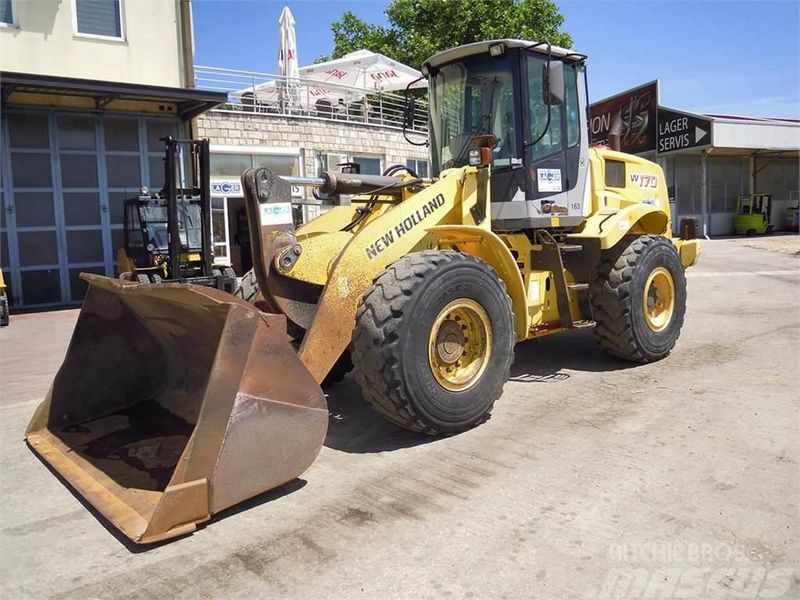

New Holland W170
Browse All New Holland or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.37 ft in (2855 mm) |
| Bucket Width | 8.32 ft in (2535 mm) |
| Bucket Capacity - Heaped | 3.41 yd3 (2.6 m3) |
Dimensions
| Ground Clearance | 1.2 ft in (365 mm) |
| Length With Bucket On Ground | 25.46 ft in (7760 mm) |
| Height To Top Of Cab | 11.08 ft in (3375 mm) |
| Wheelbase | 10.68 ft in (3255 mm) |
| Hinge Pin - Max Height | 13.06 ft in (3980 mm) |
| Reach At Max Lift And Dump | 3.99 ft in (1215 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Model | CNH F4HE0684J |
| Net Power | 197 hp (147 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 415 cu in (6.8 L) |
| Aspiration | turbo aftercooler |
Operational
| Operating Weight | 30269.5 lb (13730 kg) |
| Fuel Capacity | 66.9 gal (253 L) |
| Hydraulic System Fluid Capacity | 51 gal (193 L) |
| Engine Oil Fluid Capacity | 4 gal (15 L) |
| Cooling System Fluid Capacity | 10.6 gal (40 L) |
| Transmission Fluid Capacity | 10.6 gal (40 L) |
| Static Tipping Weight | 25739 lb (11675 kg) |
| Turning Radius | 20.4 ft in (6200 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 50 amps |
| Rear Axle Oscillation | 24 degrees |
| Tire Size | 23.5-25 RT-3B |
Transmission
| Transmission Type | PowerShift CounterShaft |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 23.7 mph (38 km/h) |
| Max Speed - Reverse | 16.1 mph (25.8 km/h) |
Hydraulic System
| Relief Valve Setting | 3626 psi (25000 kPa) |
| Pump Flow Capacity | 54.5 gal/min (206 L/min) |
| Raise Time | 5.6 sec |
| Dump Time | 2.4 sec |
| Lower Time | 3.3 sec |
| Pump Type | load sensing circuit, closed centre |
