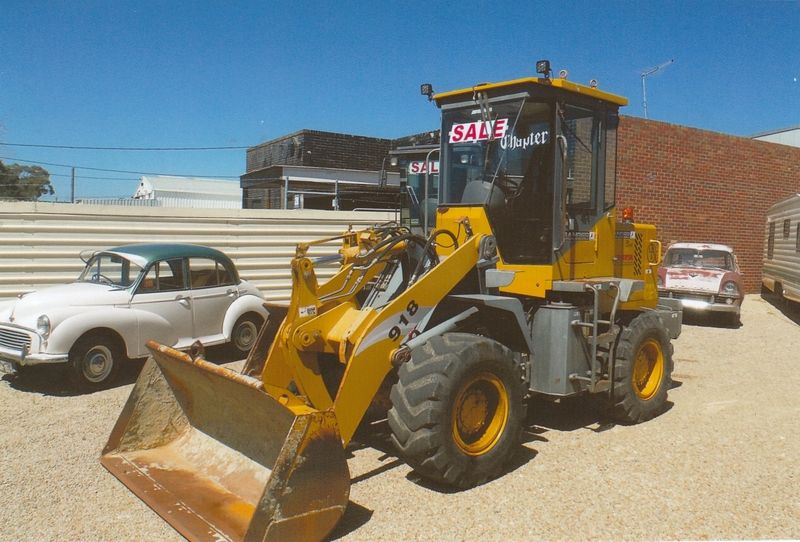

Ranger 918
Browse All Ranger or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 8.24 ft in (2510 mm) |
| Bucket Width | 7.03 ft in (2140 mm) |
| Bucket Capacity - Heaped | 1.31 yd3 (1 m3) |
Dimensions
| Ground Clearance | 0.96 ft in (290 mm) |
| Length With Bucket On Ground | 18.86 ft in (5748 mm) |
| Width Over Tires | 6.7 ft in (2040 mm) |
| Height To Top Of Cab | 9.59 ft in (2920 mm) |
| Wheelbase | 7.42 ft in (2260 mm) |
| Reach At Max Lift And Dump | 3.02 ft in (920 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2351 |
| Engine Model | 1004-4L03 |
| Net Power | 77.8 hp (58 kw) |
| Power Measured @ | 2400 rpm |
| Displacement | 243.5 cu in (4 L) |
Operational
| Operating Weight | 13448.2 lb (6100 kg) |
| Static Tipping Weight | 8093.2 lb (3671 kg) |
| Turning Radius | 8.4 ft in (2539 mm) |
| Tire Size | 16/70-20 |
Transmission
| Transmission Type | Powershift |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 16.5 mph (26.5 km/h) |
| Max Speed - Reverse | 15.6 mph (25 km/h) |
