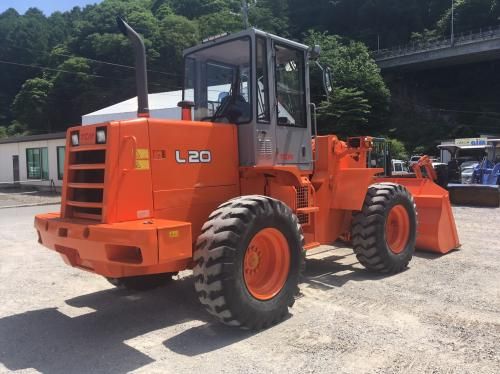

TCM L20
Browse All TCM or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.06 ft in (2760 mm) |
| Bucket Capacity - Heaped | 2.62 yd3 (2 m3) |
| Breakout Force | _ - (98 kN) |
Dimensions
| Ground Clearance | 1.32 ft in (400 mm) |
| Length With Bucket On Ground | 22.15 ft in (6750 mm) |
| Height To Top Of Cab | 10.31 ft in (3140 mm) |
| Wheelbase | 9.52 ft in (2900 mm) |
| Reach At Max Lift And Dump | 3.52 ft in (1070 mm) |
Engine
| Engine Make | 2353 |
| Engine Model | BB-6BG1T |
| Net Power | 128.8 hp (96 kw) |
Operational
| Operating Weight | 20921.9 lb (9490 kg) |
| Fuel Capacity | 45 gal (170 L) |
| Static Tipping Weight | 16226.1 lb (7360 kg) |
| Tire Size | 17.5-25-12PRL-3 |
Transmission
| Transmission Type | Hydrostatic |
| Max Speed - Forward | 21.5 mph (34.5 km/h) |
| Max Speed - Reverse | 21.5 mph (34.5 km/h) |
