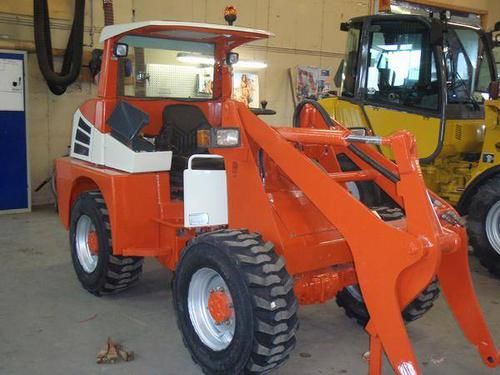

Terex SCL515
Browse All Terex or Wheel Loader Models
Contents:
Dimensions
| Ground Clearance | 0.82 ft in (248 mm) |
| Length With Bucket On Ground | 14.18 ft in (4320 mm) |
| Width Over Tires | 5.09 ft in (1550 mm) |
| Height To Top Of Cab | 6.67 ft in (2030 mm) |
| Wheelbase | 5.52 ft in (1680 mm) |
Engine
| Engine Make | Deutz |
| Gross Power | 50 hp (37.3 kw) |
| Displacement | 166.8 cu in (2.8 L) |
Operational
| Fuel Capacity | 16.4 gal (62 L) |
| Hydraulic System Fluid Capacity | 15.4 gal (58 L) |
| Operating Voltage | 12 V |
| Tire Size | 12-16.5 EM 14 |
Hydraulic System
| Pump Flow Capacity | 9.8 gal/min (36.8 L/min) |
