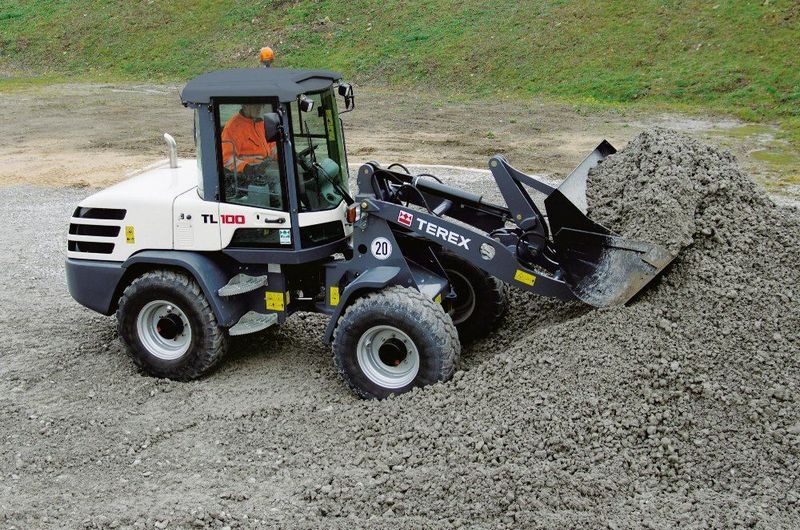

Terex TL100
Browse All Terex or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 8.65 ft in (2635 mm) |
| Bucket Capacity - Heaped | 1.3 yd3 (1 m3) |
| Bucket Width | 6.4 ft in (1950 mm) |
| Breakout Force | 12375 lb (55.04 kN) |
Dimensions
| Ground Clearance | 1.51 ft in (460 mm) |
| Length With Bucket On Ground | 17.43 ft in (5310 mm) |
| Width Over Tires | 6.07 ft in (1850 mm) |
| Height To Top Of Cab | 9.08 ft in (2765 mm) |
| Wheelbase | 7.29 ft in (2220 mm) |
| Hinge Pin - Max Height | 11.06 ft in (3370 mm) |
| Reach At Max Lift And Dump | 2.33 ft in (710 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2349 |
| Engine Model | BF 4M 2011 |
| Net Power | 73.5 hp (54.9 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 189 cu in (3.1 L) |
| Aspiration | natural |
Operational
| Operating Weight | 13230 lb (6001.1 kg) |
| Fuel Capacity | 29.1 gal (110 L) |
| Hydraulic System Fluid Capacity | 23.3 gal (88 L) |
| Static Tipping Weight | 10538.1 lb (4780 kg) |
| Turning Radius | 14.6 ft in (4450 mm) |
| Operating Voltage | 12 V |
| Rear Axle Oscillation | 24 degrees |
| Tire Size | 405/70 R 20 EM 01 Mitas |
Transmission
| Transmission Type | Hydrosatic |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 12.5 mph (20 km/h) |
| Max Speed - Reverse | 12.5 mph (20 km/h) |
Hydraulic System
| Relief Valve Setting | 3625 psi (24993.5 kPa) |
| Pump Flow Capacity | 19 gal/min (72 L/min) |
