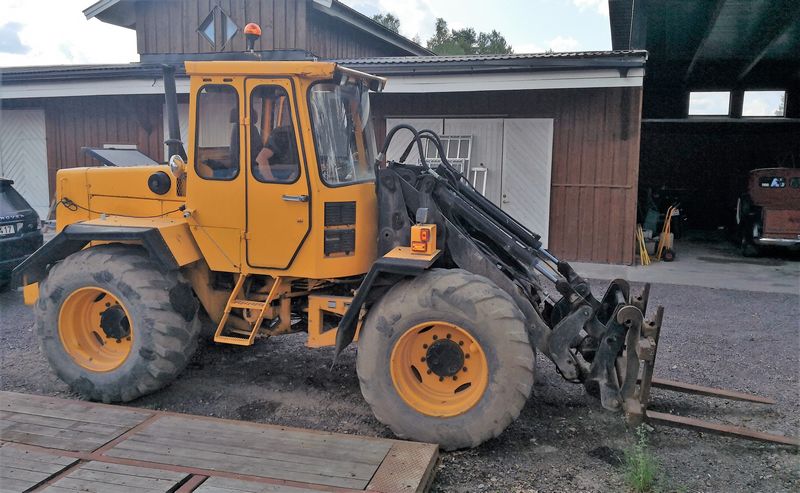

Volvo BM 4200
Browse All Volvo BM or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.19 ft in (2800 mm) |
| Bucket Capacity - Heaped | 1.05 yd3 (0.8 m3) |
| Bucket Width | 6.57 ft in (2000 mm) |
| Breakout Force | 12960 lb (57.65 kN) |
Dimensions
| Ground Clearance | 1.25 ft in (380 mm) |
| Length With Bucket On Ground | 18.54 ft in (5650 mm) |
| Width Over Tires | 6.53 ft in (1990 mm) |
| Height To Top Of Cab | 9.03 ft in (2750 mm) |
| Wheelbase | 8.95 ft in (2725 mm) |
| Hinge Pin - Max Height | 11.72 ft in (3570 mm) |
| Reach At Max Lift And Dump | 2.37 ft in (720 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2244 |
| Engine Model | D 39 L |
| Net Power | 67 hp (50 kw) |
| Gross Power | 70 hp (52.2 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 187.4 lb ft (254 Nm) |
| Displacement | 236 cu in (3.9 L) |
| Torque Measured @ | 1400 rpm |
Operational
| Operating Weight | 12600 lb (5715.3 kg) |
| Fuel Capacity | 25.1 gal (95 L) |
| Hydraulic System Fluid Capacity | 27.8 gal (105 L) |
| Engine Oil Fluid Capacity | 2.2 gal (8 L) |
| Cooling System Fluid Capacity | 4.8 gal (18 L) |
| Transmission Fluid Capacity | 4.8 gal (18 L) |
| Front Axle/Diff Fluid Capacity | 2 gal (7.5 L) |
| Rear Axle/Diff Fluid Capacity | 2 gal (7.5 L) |
| Static Tipping Weight | 7495.8 lb (3400 kg) |
| Turning Radius | 14 ft in (4260 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 45 amps |
| Rear Axle Oscillation | 22 degrees |
| Tire Size | 14.9-24/12 |
Transmission
| Transmission Type | power shift |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 18.7 mph (30 km/h) |
| Max Speed - Reverse | 18.7 mph (30 km/h) |
Hydraulic System
| Relief Valve Setting | 1420 psi (9790.6 kPa) |
| Pump Flow Capacity | 27.3 gal/min (103 L/min) |
| Raise Time | 5.2 sec |
| Dump Time | 1.7 sec |
| Lower Time | 2.9 sec |
| Pump Type | Gear pump |
