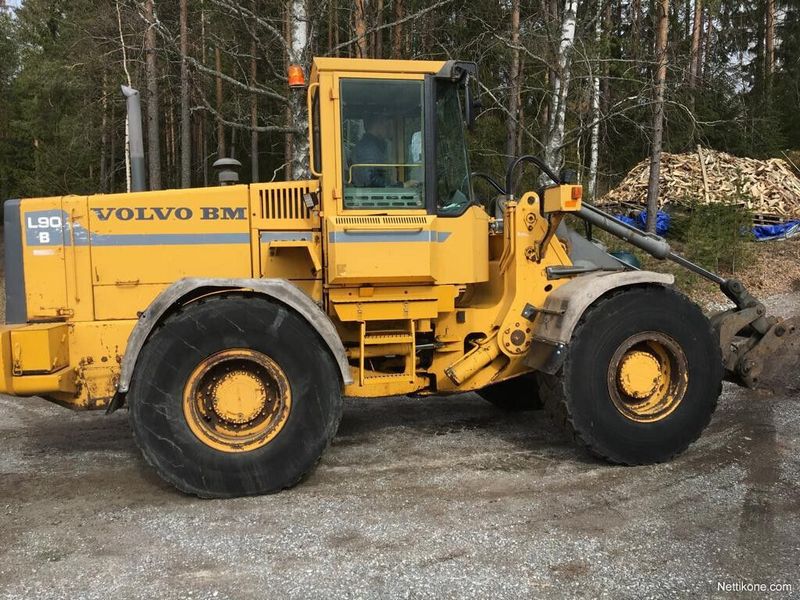

Volvo BM L90B
Browse All Volvo BM or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.22 ft in (2810 mm) |
| Bucket Capacity - Heaped | 2.75 yd3 (2.1 m3) |
| Bucket Width | 8.7 ft in (2650 mm) |
| Breakout Force | 27130 lb (120.69 kN) |
Dimensions
| Ground Clearance | 1.35 ft in (410 mm) |
| Length With Bucket On Ground | 23.63 ft in (7200 mm) |
| Width Over Tires | 8.17 ft in (2490 mm) |
| Height To Top Of Cab | 10.5 ft in (3200 mm) |
| Wheelbase | 9.85 ft in (3000 mm) |
| Hinge Pin - Max Height | 12.5 ft in (3810 mm) |
| Reach At Max Lift And Dump | 3.45 ft in (1050 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2244 |
| Engine Model | TD 61 GB |
| Net Power | 109 hp (81.3 kw) |
| Gross Power | 115 hp (85.8 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 464.7 lb ft (630 Nm) |
| Displacement | 334.5 cu in (5.5 L) |
| Torque Measured @ | 1400 rpm |
| Aspiration | turbocharged |
Operational
| Operating Weight | 27785 lb (12603.1 kg) |
| Fuel Capacity | 55.5 gal (210 L) |
| Hydraulic System Fluid Capacity | 34.4 gal (130 L) |
| Engine Oil Fluid Capacity | 4.5 gal (17 L) |
| Cooling System Fluid Capacity | 14.1 gal (53 L) |
| Transmission Fluid Capacity | 8.8 gal (33 L) |
| Front Axle/Diff Fluid Capacity | 8.6 gal (32.5 L) |
| Rear Axle/Diff Fluid Capacity | 7.8 gal (29.5 L) |
| Static Tipping Weight | 20944 lb (9500 kg) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 60 amps |
| Rear Axle Oscillation | 30 degrees |
| Tire Size | 20.5R25 |
Transmission
| Transmission Type | powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 24.7 mph (39.7 km/h) |
| Max Speed - Reverse | 17.8 mph (28.5 km/h) |
Hydraulic System
| Relief Valve Setting | 2975 psi (20511.9 kPa) |
| Pump Flow Capacity | 53.4 gal/min (202 L/min) |
| Raise Time | 6.5 sec |
| Dump Time | 1.5 sec |
| Lower Time | 3 sec |
| Pump Type | open center system |
