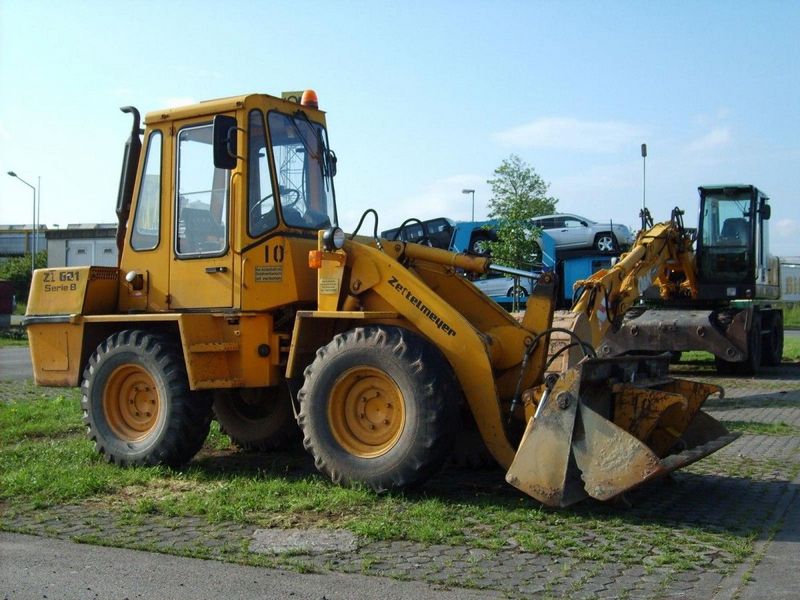

Zettelmeyer ZL601
Browse All Zettelmeyer or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 8.04 ft in (2450 mm) |
| Breakout Force | 8767.55 lb (39 kN) |
| Bucket Capacity - Heaped | 0.92 yd3 (0.7 m3) |
| Bucket Capacity - Struck | 0.79 yd3 (0.6 m3) |
| Bucket Width | 5.75 ft in (1750 mm) |
Dimensions
| Ground Clearance | 1.48 ft in (450 mm) |
| Length With Bucket On Ground | 16.41 ft in (5000 mm) |
| Height To Top Of Cab | 8.83 ft in (2690 mm) |
| Wheelbase | 6.4 ft in (1950 mm) |
| Hinge Pin - Max Height | 10.11 ft in (3080 mm) |
| Reach At Max Lift And Dump | 2.43 ft in (740 mm) |
Engine
| Number Of Cylinders | 3 |
| Engine Make | 2360 |
| Engine Model | 3 L 3 30 S |
| Gross Power | 45 hp (33.6 kw) |
| Power Measured @ | 3000 rpm |
| Max Torque | 89.3 lb ft (121 Nm) |
| Displacement | 129.8 cu in (2.2 L) |
| Torque Measured @ | 2100 rpm |
| Aspiration | natural |
Operational
| Operating Weight | 9039 lb (4100 kg) |
| Fuel Capacity | 15.9 gal (60 L) |
| Hydraulic System Fluid Capacity | 13.3 gal (50 L) |
| Engine Oil Fluid Capacity | 2 gal (7.5 L) |
| Front Axle/Diff Fluid Capacity | 1 gal (3.5 L) |
| Rear Axle/Diff Fluid Capacity | 2 gal (7.5 L) |
| Static Tipping Weight | 5996.6 lb (2720 kg) |
| Turning Radius | 14.3 ft in (4350 mm) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 55 amps |
| Rear Axle Oscillation | 20 degrees |
| Tire Size | 12.5-20 |
Transmission
| Transmission Type | hydrostatic |
| Max Speed - Forward | 12.5 mph (20 km/h) |
| Max Speed - Reverse | 12.5 mph (20 km/h) |
Hydraulic System
| Relief Valve Setting | 2900.8 psi (20000 kPa) |
| Pump Flow Capacity | 11.1 gal/min (42 L/min) |
| Raise Time | 6.5 sec |
| Dump Time | 1.8 sec |
| Lower Time | 3 sec |
| Pump Type | gear type tandem |
