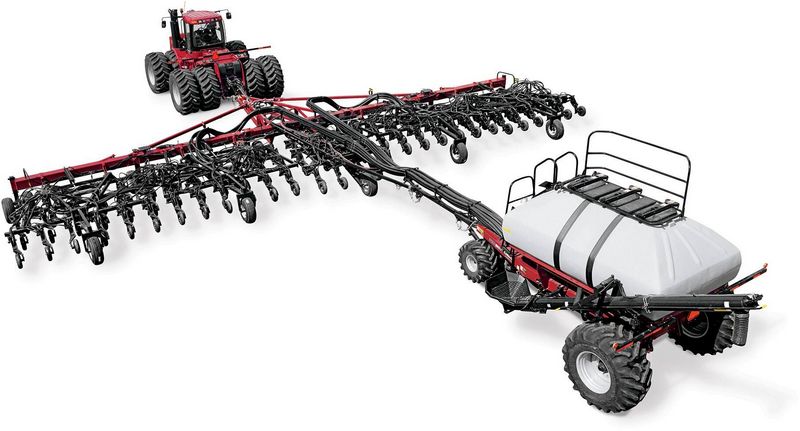

Case IH PRECISION HOE 800
Contents:
Dimensions
| Basic Weight, Maximum | 38065.02 lb (17266 kg) |
| Basic Weight, Minimum | 27650.38 lb (12542 kg) |
| Number Of Furrows, Maximum | 84 |
| Number Of Furrows, Minimum | 50 |
| Transport Height- Maximum | 16.51 ft in (5.03 m) |
| Transport Height- Minimum | 16.51 ft in (5.03 m) |
| Transport Width- Maximum | 17.72 ft in (5.4 m) |
| Transport Width-Minimum | 17.72 ft in (5.4 m) |
| Variants Available | 3 widths, 2 row spacings |
| Working Width- Maximum, | 69.89 ft in (21.3 m) |
| Working Width- Minimum | 50.2 ft in (15.3 m) |
Configuration
| Seeding Method | Precision hoe |
Primary Opener Assembly
| Opener Type | Dual pivot shank on parallel links |
Tires And Frame
| Center Frame Tire | 11L x 15FI or 12.5L x 15FI |
Primary Opener Assembly
| Depth Gauging System | By press wheel |
Configuration
| Row Spacings | 10, 12 (254, 305) in (mm) |
| Seed Supply | Air Cart |
Tires And Frame
| Wing Frame Tire | 11L x 15FI or 12.5L x 15FI |
Primary Opener Assembly
| Seeding Depth, Maximum | 2.1 in (51 mm) |
| Down Pressure, Minimum | 134.5 lb (61 kg) |
Configuration
| Frame Sections | 3 and 5 section |
Primary Opener Assembly
| Down Pressure, Maximum | 215 lb (97.5 kg) |
Tires And Frame
| Number Of Ranks | 3 |
Configuration
| Transport Folding Method | Rear fold |
Tires And Frame
| Distance Between Ranks | 39.1 in (991 mm) |
Primary Opener Assembly
| Type Of Fertilizer Delivery | Double shoot |
Engine
| Engine Make | Case IH |
| Engine Model | Precision Hoe 800 |
Wheels
| Press Wheels Mounted On Opener Or To Frame | Mounted on opener |
| Press Wheel Description | 4.8 wide smooth x 8, pneumatic |
