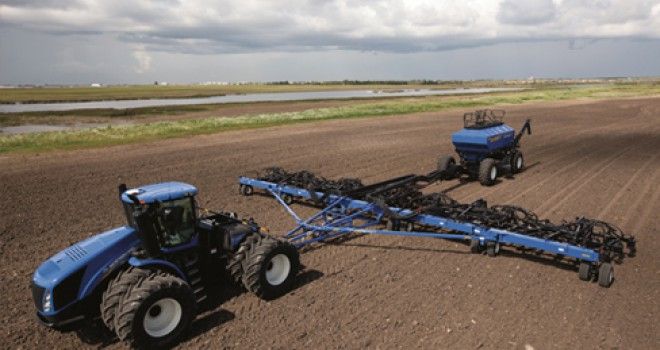

New Holland P2070 PRECISION HOE
Browse All New Holland or Air Drill Models
Contents:
Dimensions
| Basic Weight, Maximum | 38065.02 lb (17266 kg) |
| Basic Weight, Minimum | 27650.38 lb (12542 kg) |
| Number Of Furrows, Maximum | 84 |
| Number Of Furrows, Minimum | 50 |
| Transport Height- Maximum | 16.51 ft in (5.03 m) |
| Transport Height- Minimum | 16.51 ft in (5.03 m) |
| Transport Width- Maximum | 17.72 ft in (5.4 m) |
| Transport Width-Minimum | 17.72 ft in (5.4 m) |
| Variants Available | 6 |
| Working Width- Maximum, | 69.89 ft in (21.3 m) |
| Working Width- Minimum | 50.2 ft in (15.3 m) |
Sales Literature
| Literature Number | PLA-41005-08 |
Tires And Frame
| Center Frame Tire Size Min | 11 x 15FI |
Configuration
| Seeding Method | Precision hoe |
Primary Opener Assembly
| Opener Type | Double pivot toggle trip hoe on parallel arms |
Frame Mounted Press Wheels
| Frame Mtd. Press Wheels - Wheel / Tire Description | See opener-mounted press wheel |
Configuration
| Row Spacings | 12 in (304.8 mm) |
Sales Literature
| Literature Date | 04 - 2008 |
Primary Opener Assembly
| Depth Gauging System | By press wheel |
Tires And Frame
| Center Frame Tire | 12.5 x 15FI |
| Wing Frame Tire Size Min | 11 x 15FI |
Primary Opener Assembly
| Opener-Mounted Press Wheel Description | 4.8" wide round pneumatic tire |
Configuration
| Seed Supply | Air cart |
| Frame Sections & Transport Folding Method | 3 & 5-section, horizontal rear fold |
Tires And Frame
| Wing Frame Tire | 12.5 x 15FI |
Primary Opener Assembly
| Seeding Depth, Maximum | 2 in (50.8 mm) |
Tires And Frame
| Frame Height Control | Fixed |
Primary Opener Assembly
| Down Pressure, Minimum | 134.5 lb (61 kg) |
Tires And Frame
| Number Of Ranks | 3 |
Primary Opener Assembly
| Down Pressure, Maximum | 200.7 lb (91 kg) |
| Trip Load | 550 lb (249.5 kg) |
Tires And Frame
| Distance Between Ranks | 39 in (990.6 mm) |
Primary Opener Assembly
| Type Of Fertilizer Delivery | Double shoot |
Tires And Frame
| Under Frame Clearance | 30 in (762 mm) |
