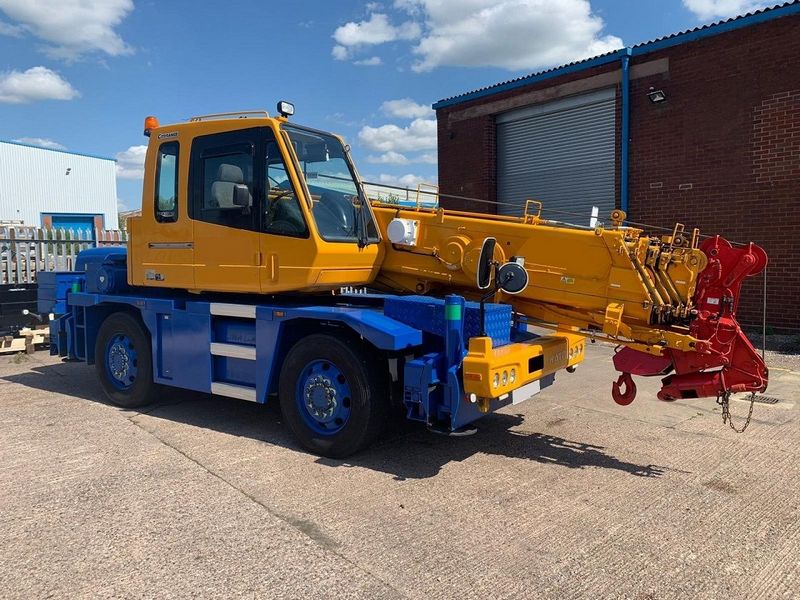

Kato 4100
Browse All Kato or All Terrain Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 38.72 ft in (11.8 m) |
| Max Height @ Max Raise Angle - No Jib | 59.06 ft in (18 m) |
| Max Elevating Angle | 83 degrees |
| Number Of Sections | 7 |
Dimensions
| Transport Length | 43.48 ft in (13250 mm) |
| Transport Width | 9.03 ft in (2750 mm) |
| Transport Height | 12.9 ft in (3930 mm) |
| Width W/ Outriggers Extended | 24.28 ft in (7400 mm) |
| Carrier Length | 37.5 ft in (11430 mm) |
| Upper Structure Tail Swing Radius | 8.54 ft in (2600 mm) |
Carrier Engine
| Make | Kato |
| Model | D12A 420 (EURO 2) |
| Gross Power | 414.4 hp (309 kw) |
| Power Measured @ | 1800 rpm |
| Max Torque | 1364.5 lb ft (1850 Nm) |
| Torque Measured @ | 1200 rpm |
Operational
| Number Of Axels | 4 |
| Carrier Fuel Capacity | 105.7 gal (400 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 80 amps |
| Tire Size | 445/95 R25 177E |
Transmission
| Transmission Type | Full Automatic |
| Number Of Forward Gears | 6 |
| Number Of Reverse Gears | 1 |
