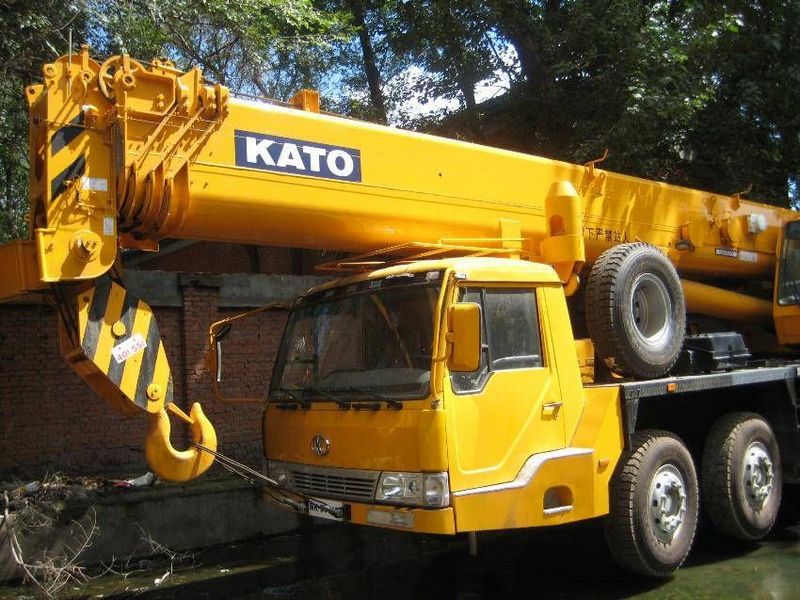

Kato NK550VR
Browse All Kato or Hydraulic Truck Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 45.94 ft in (14 m) |
| Max Height @ Max Raise Angle - No Jib | 150.92 ft in (46 m) |
| Min Working Radius | 9.85 ft in (3 m) |
| Max Working Radius | 101.71 ft in (31 m) |
| Max Elevating Angle | 81 degrees |
| Number Of Sections | 4 |
| Max Lift Capacity | 121254.26 lb (55000 kg) |
| Swing Speed | 1.85 rpm |
Dimensions
| Transport Length | 43.87 ft in (13370 mm) |
| Transport Width | 9.19 ft in (2800 mm) |
| Transport Height | 12.41 ft in (3780 mm) |
| Ground Clearance | 1.26 ft in (382 mm) |
| Width W/ Outriggers Extended | 23.86 ft in (7270 mm) |
| Upper Structure Tail Swing Radius | 11.42 ft in (3480 mm) |
Carrier Engine
| Model | CA6DL1-31 (EURO-II) |
| Gross Power | 305.8 hp (228 kw) |
| Max Torque | 811.4 lb ft (1100 Nm) |
| Displacement | 469.9 cu in (7.7 L) |
Operational
| Operating Weight | 91712.4 lb (41600 kg) |
| Carrier Fuel Capacity | 100.4 gal (380 L) |
| Upper Structure Hydraulic System Fluid Capacity | 183.6 gal (695 L) |
| Tire Size | 12.00R20-18PR |
Transmission
| Transmission Type | manual transmission type |
| Number Of Forward Gears | 9 |
| Number Of Reverse Gears | 1 |
| Max Speed - Forward | 43.5 mph (70 km/h) |
