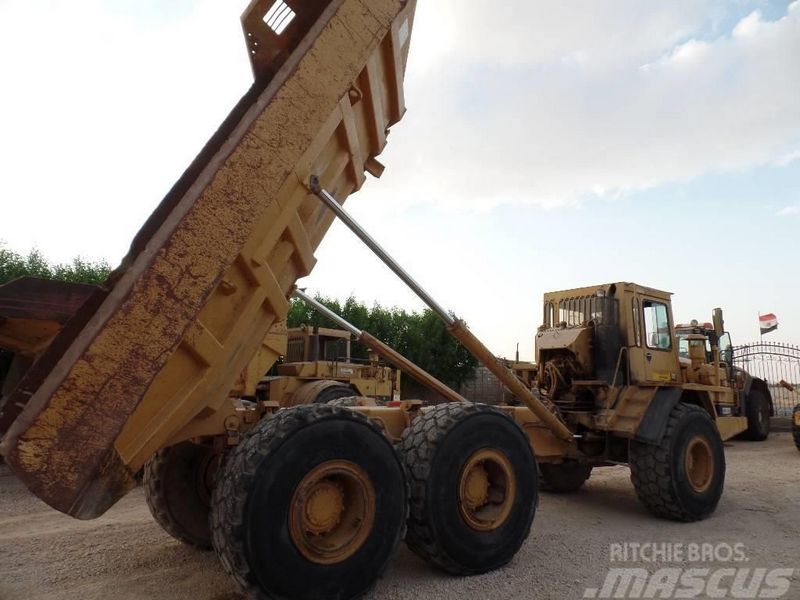

Caterpillar D300B
Contents:
| Overall Length | 31.67 ft in (9650 mm) |
| Overall Width | 8.99 ft in (2740 mm) |
| Overall Height | 10.54 ft in (3210 mm) |
| Wheelbase | 18.97 ft in (5780 mm) |
| Dump Height | 20.54 ft in (6260 mm) |
| Capacity - Struck | 17.01 yd3 (13 m3) |
| Capacity - Heaped | 22.24 yd3 (17 m3) |
| Rated Payload | 147401.08 lb (66860 kg) |
| Engine Make | 2236 |
| Engine Model | 3306 |
| Gross Power | 260.2 hp (194 kw) |
| Displacement | 640.8 cu in (10.5 L) |
| Fuel Capacity | 95.2 gal (360 L) |
| Tire Size | 23.5x25 Radials |
| Number Of Forward Gears | 5 |
| Max Speed | 34.8 mph (56 km/h) |
| Front Axle - Empty | 24444.9 lb (11088 kg) |
| Center Axle - Empty | 9603.4 % |
| Rear Axle - Empty | 9603.4 lb (4356 kg) |
| Front Axle - Loaded | 32163.3 % |
| Center Axle - Loaded | 35794.3 % |
| Rear Axle - Loaded | 35794.3 lb (16236 kg) |
| Total Empty | 43651.6 lb (19800 kg) |
| Total Loaded | 103749.6 lb (47060 kg) |
