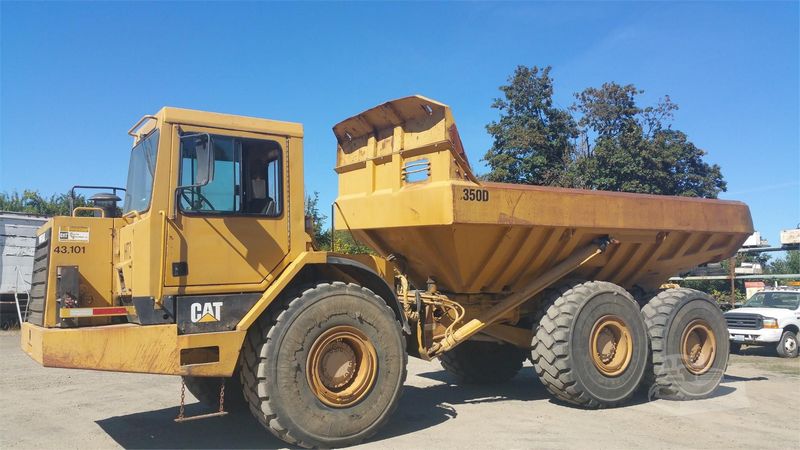

Caterpillar D350D
Contents:
| Overall Length | 32.65 ft in (9950 mm) |
| Overall Width | 9.85 ft in (3000 mm) |
| Overall Height | 10.93 ft in (3330 mm) |
| Wheelbase | 19.33 ft in (5890 mm) |
| Dump Height | 21.4 ft in (6520 mm) |
| Capacity - Struck | 20.93 yd3 (16 m3) |
| Capacity - Heaped | 26.82 yd3 (20.5 m3) |
| Rated Payload | 69976.94 lb (31741 kg) |
| Engine Make | 2236 |
| Engine Model | 3306 |
| Gross Power | 285.7 hp (213 kw) |
| Displacement | 640.8 cu in (10.5 L) |
| Fuel Capacity | 118.9 gal (450 L) |
| Tire Size | 26.5x25 Radials |
| Number Of Forward Gears | 5 |
| Max Speed | 29.9 mph (48 km/h) |
| Front Axle - Empty | 30364.3 lb (13773 kg) |
| Center Axle - Empty | 11929.3 % |
| Rear Axle - Empty | 11929.3 lb (5411 kg) |
| Front Axle - Loaded | 42227.4 % |
| Center Axle - Loaded | 40474.7 % |
| Rear Axle - Loaded | 40474.7 lb (18359 kg) |
| Total Empty | 54222.7 lb (24595 kg) |
| Total Loaded | 124199.7 lb (56336 kg) |
