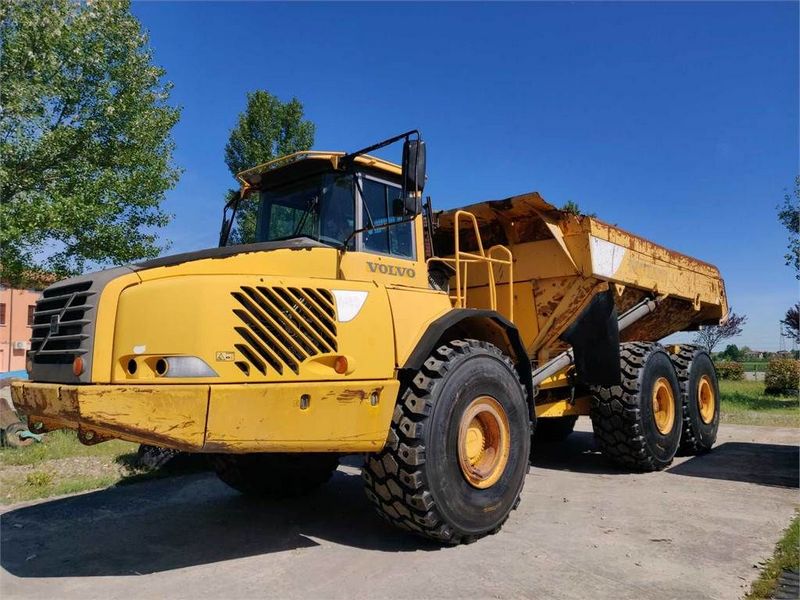

Volvo A40D
Browse All Volvo or Articulated Dump Truck Models
Contents:
Dimensions
| Overall Length | 37.04 ft in (11287 mm) |
| Overall Width | 10.73 ft in (3268 mm) |
| Overall Height | 12.29 ft in (3746 mm) |
| Wheelbase | 14.6 ft in (4448 mm) |
| Ground Clearance | 2.03 ft in (617 mm) |
| Dump Height | 24.23 ft in (7384 mm) |
| Dump Ground Clearance | 2.98 ft in (906 mm) |
Dump
| Dump Angle | 70 degrees |
| Lower Time | 10 sec |
| Rated Payload | 81571.04 lb (37000 kg) |
| Capacity - Struck | 22.11 yd3 (16.9 m3) |
| Capacity - Heaped | 29.43 yd3 (22.5 m3) |
Engine
| Engine Make | 2244 |
| Engine Model | D12C AAE2* |
| Gross Power | 426 hp (317.7 kw) |
| Net Power | 420 hp (313.2 kw) |
| Max Torque | 1516.5 lb ft (2056 Nm) |
| Aspiration | Turbocharged |
| Displacement | 732.3 cu in (12 L) |
Operational
| Fuel Capacity | 126.9 gal (480 L) |
| Hydraulic System Fluid Capacity | 66.1 gal (250 L) |
| Cooling System Fluid Capacity | 31 gal (117 L) |
| Engine Oil Capacity | 13.3 gal (50 L) |
| Transmission Fluid Capacity | 12.9 gal (48.5 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 55 amps |
| Tire Size | 29.5 R 25** |
Transmission
| Transmission Type | Fully Automatic |
| Number Of Forward Gears | 6 |
| Number Of Reverse Gears | 2 |
| Max Speed | 34.8 mph (56 km/h) |
Weights
| Front Axle - Empty | 35935.4 lb (16300 kg) |
| Rear Axle - Empty | 33003.2 lb (14970 kg) |
| Front Axle - Loaded | 42262.7 % |
| Rear Axle - Loaded | 108247 lb (49100 kg) |
| Total Empty | 68938.6 lb (31270 kg) |
| Total Loaded | 150509.6 lb (68270 kg) |
