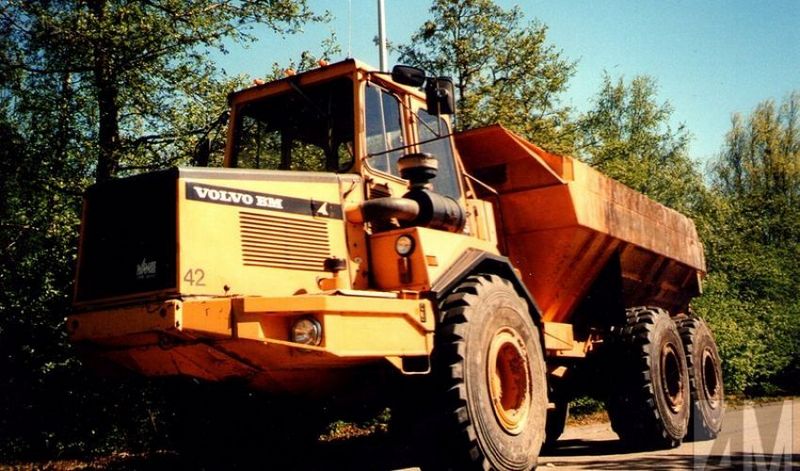

Volvo BM A25 6x4
Browse All Volvo BM or Articulated Dump Truck Models
Contents:
Dimensions
| Overall Length | 31.19 ft in (9505 mm) |
| Overall Width | 8.17 ft in (2490 mm) |
| Overall Height | 10.34 ft in (3150 mm) |
| Wheelbase | 13.7 ft in (4175 mm) |
| Ground Clearance | 1.32 ft in (400 mm) |
| Dump Height | 19.82 ft in (6040 mm) |
| Dump Ground Clearance | 1.97 ft in (600 mm) |
Dump
| Dump Angle | 63 degrees |
| Lower Time | 16 sec |
| Rated Payload | 49604.01 lb (22500 kg) |
| Capacity - Struck | 12.3 yd3 (9.4 m3) |
| Raise Time | 12 sec |
| Capacity - Heaped | 15.7 yd3 (12 m3) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2244 |
| Engine Model | TD 71 K |
| Gross Power | 244 hp (182 kw) |
| Net Power | 240 hp (179 kw) |
| Power Measured @ | 2400 rpm |
| Max Torque | 590.1 lb ft (800 Nm) |
| Torque Measured @ | 1600 rpm |
| Aspiration | Turbocharged |
| Displacement | 410.7 cu in (6.8 L) |
Operational
| Fuel Capacity | 74 gal (280 L) |
| Hydraulic System Fluid Capacity | 42.3 gal (160 L) |
| Cooling System Fluid Capacity | 8 gal (30 L) |
| Engine Oil Capacity | 6.4 gal (24 L) |
| Transmission Fluid Capacity | 4.3 gal (16 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 45 amps |
| Tire Size | 20.5 R 25 |
Transmission
| Transmission Type | Planetary transmission |
| Number Of Forward Gears | 10 |
| Number Of Reverse Gears | 2 |
| Max Speed | 29.3 mph (47 km/h) |
Weights
| Front Axle - Empty | 18740 lb (8500.4 kg) |
| Rear Axle - Empty | 15880 lb (7203.1 kg) |
| Front Axle - Loaded | 24250 % |
| Rear Axle - Loaded | 59980 lb (27206.5 kg) |
| Total Empty | 34620 lb (15703.4 kg) |
| Total Loaded | 84230 lb (38206.1 kg) |
