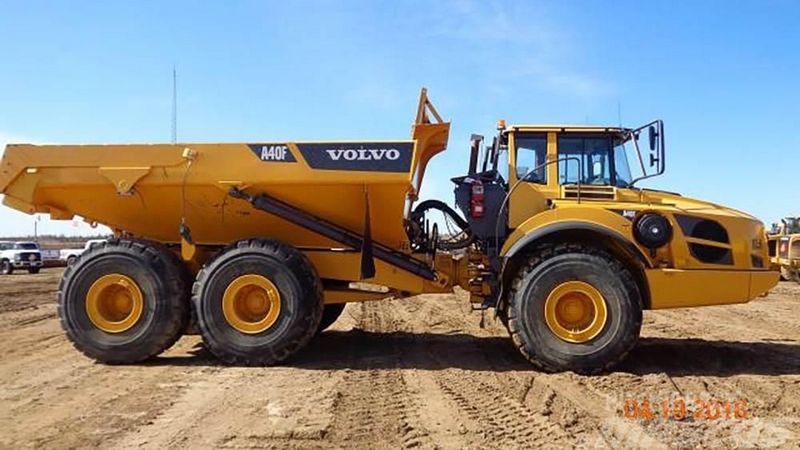

Volvo A40F
Browse All Volvo or Articulated Dump Truck Models
Contents:
Dimensions
| Overall Length | 36.96 ft in (11263 mm) |
| Overall Width | 11.27 ft in (3433 mm) |
| Overall Height | 12.06 ft in (3673 mm) |
| Wheelbase | 18.01 ft in (5488 mm) |
| Ground Clearance | 1.88 ft in (571 mm) |
| Dump Height | 23.91 ft in (7287 mm) |
| Dump Ground Clearance | 2.77 ft in (844 mm) |
Dump
| Dump Angle | 70 degrees |
| Lower Time | 10 sec |
| Rated Payload | 85980.28 lb (39000 kg) |
| Capacity - Struck | 24.07 yd3 (18.4 m3) |
| Raise Time | 12 sec |
| Capacity - Heaped | 31.4 yd3 (24 m3) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2244 |
| Engine Model | D13H-A |
| Gross Power | 476 hp (355 kw) |
| Net Power | 465 hp (346.8 kw) |
| Power Measured @ | 1800 rpm |
| Max Torque | 1862 lb ft (2524.6 Nm) |
| Torque Measured @ | 1050 rpm |
| Aspiration | Turbocharged |
| Displacement | 982 cu in (16.1 L) |
Operational
| Fuel Capacity | 144 gal (545 L) |
| Hydraulic System Fluid Capacity | 69.3 gal (262 L) |
| Cooling System Fluid Capacity | 25.1 gal (95 L) |
| Engine Oil Capacity | 14.3 gal (54 L) |
| Transmission Fluid Capacity | 12.1 gal (45.5 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 80 amps |
| Tire Size | 29.5R25 |
Transmission
| Transmission Type | PT2519 |
| Number Of Forward Gears | 9 |
| Number Of Reverse Gears | 3 |
| Max Speed | 35 mph (56.4 km/h) |
Weights
| Front Axle - Empty | 36486.6 lb (16550 kg) |
| Rear Axle - Empty | 31415.9 lb (14250 kg) |
| Front Axle - Loaded | 45194.8 % |
| Rear Axle - Loaded | 108687.9 lb (49300 kg) |
| Total Empty | 67902.4 lb (30800 kg) |
| Total Loaded | 153882.7 lb (69800 kg) |
