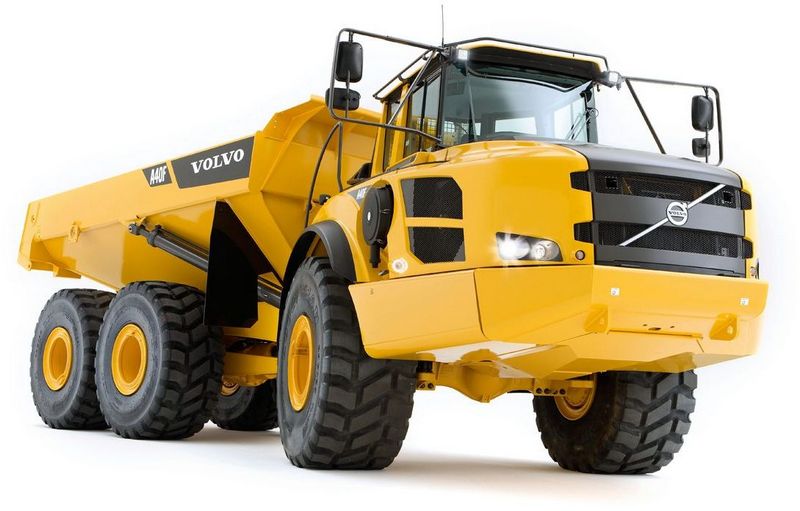

Volvo HAULER A40F
Browse All Volvo or Articulated Dump Truck Models
Contents:
Dimensions
| Overall Length | 36.96 ft in (11263 mm) |
| Overall Width | 11.27 ft in (3433 mm) |
| Overall Height | 12.37 ft in (3769 mm) |
| Wheelbase | 14.83 ft in (4518 mm) |
| Ground Clearance | 1.88 ft in (571 mm) |
| Dump Height | 23.91 ft in (7287 mm) |
| Dump Ground Clearance | 2.77 ft in (844 mm) |
Engine
| Gross Power | 469.4 hp (350 kw) |
| Net Power | 465.4 hp (347 kw) |
| Power Measured @ | 1800 rpm |
| Max Torque | 1862.4 lb ft (2525 Nm) |
| Displacement | 982.5 cu in (16.1 L) |
Operational
| Operational Weight | 153441.8 lb (69600 kg) |
| Fuel Capacity | 126.9 gal (480 L) |
| Hydraulic System Fluid Capacity | 64.8 gal (245 L) |
| Cooling System Fluid Capacity | 19.9 gal (75 L) |
| Transmission Fluid Capacity | 10.6 gal (40 L) |
| Tire Size | 775/65R29 |
