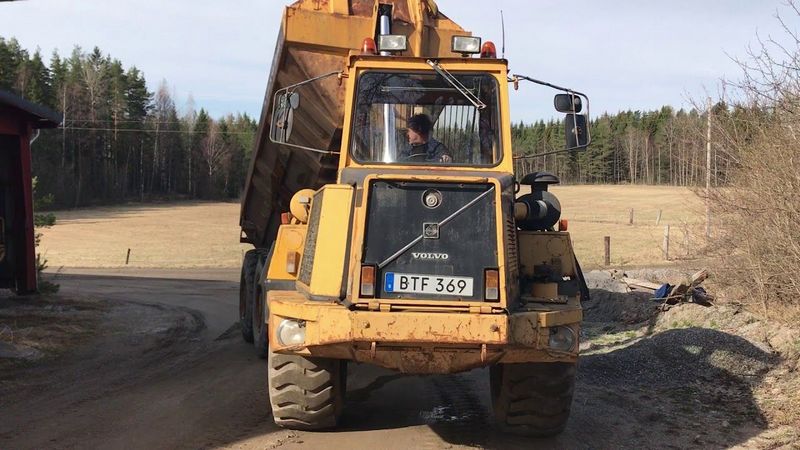

Volvo BM 5350B
Browse All Volvo BM or Articulated Dump Truck Models
Contents:
Dimensions
| Overall Length | 31.19 ft in (9505 mm) |
| Overall Width | 8.17 ft in (2490 mm) |
| Overall Height | 10.34 ft in (3150 mm) |
| Wheelbase | 13.78 ft in (4200 mm) |
| Ground Clearance | 1.32 ft in (400 mm) |
| Dump Height | 19.82 ft in (6040 mm) |
| Dump Ground Clearance | 1.97 ft in (600 mm) |
Dump
| Dump Angle | 63 degrees |
| Lower Time | 16 sec |
| Rated Payload | 49604.01 lb (22500 kg) |
| Capacity - Struck | 12.95 yd3 (9.9 m3) |
| Raise Time | 12 sec |
| Capacity - Heaped | 17.01 yd3 (13 m3) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2244 |
| Engine Model | TD 70 G |
| Gross Power | 213 hp (158.9 kw) |
| Net Power | 190 hp (141.7 kw) |
| Power Measured @ | 2400 rpm |
| Max Torque | 466.9 lb ft (633 Nm) |
| Torque Measured @ | 1600 rpm |
| Aspiration | Turbocharged |
| Displacement | 411 cu in (6.8 L) |
Operational
| Fuel Capacity | 74 gal (280 L) |
| Hydraulic System Fluid Capacity | 42.3 gal (160 L) |
| Cooling System Fluid Capacity | 8 gal (30 L) |
| Engine Oil Capacity | 4.9 gal (18.5 L) |
| Operating Voltage | 24 V |
| Tire Size | front 23.5 R 25* rear 29.5R25** |
Transmission
| Transmission Type | Single-Stage with free-wheeling stator and automatic lock-up conversion ratio |
| Number Of Forward Gears | 5 |
| Number Of Reverse Gears | 1 |
| Max Speed | 28.6 mph (46 km/h) |
Weights
| Front Axle - Empty | 18739.3 lb (8500 kg) |
| Front Axle - Loaded | 24691.8 % |
| Total Empty | 34612.6 lb (15700 kg) |
| Total Loaded | 84216.6 lb (38200 kg) |
