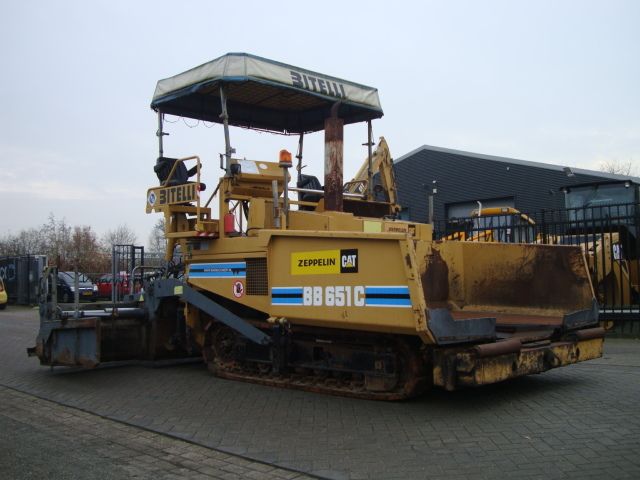

Bitelli BB651C
Browse All Bitelli or Asphalt Paver Models
Contents:
Dimensions
| Length W/ Screed | 17.92 ft in (5460 mm) |
| Transport Width | 8.21 ft in (2500 mm) |
| Transport Height | 11.65 ft in (3550 mm) |
| Transport Height - Muffler Removed | 8.2 ft in (2.5 m) |
| Transport Width - Hoppers Raised - With End Gates With Extend-A-Mat B Screed | 8.2 ft in (2.5 m) |
| Length - With Push Roller And Extend-A-Mat B Screed | 17.91 ft in (5.46 m) |
| Width W/ Hopper Open | 10.24 ft in (3120 mm) |
| Overall Height | 11.65 ft in (3550.92 mm) |
| Track Contact Length | 7.68 ft in (2.35 m) |
Engine
| Engine Make | 2349 |
| Engine Model | F5L 912 |
| Gross Power | 94 hp (70.1 kw) |
| Engine Model | Deutz F5L 914 |
Operational
| Operating Weight W/O Screed | 22729.7 lb (10310 kg) |
| Operating Weight W/ Screed | 31967.1 lb (14500 kg) |
| Fuel Capacity | 37 gal (140 L) |
| Hydraulic System Fluid Capacity | 41 gal (155 L) |
Hopper/Paver
| Hopper Capacity | 6.9 lb (5.3 kg) |
| Paving Width - Std | 8.3 ft in (2500 mm) |
| Paving Width - Max | 19.7 ft in (6000 mm) |
| Paving Speed - Max | 170.7 ft/min (52 m/min) |
| Travel Speed - Max | 6.9 mph (11 km/h) |
Weights
| Tractor Weight | 22729.7 lb (10310 kg) |
| Operating Weight - With Extend-A-Mat 8-16b Screed | 31967 lb (14500 kg) |
| Operating Weight - With Screed | 31967 lb (14500 kg) |
Operating Specifications
| Paving Width Minimum | 8.2 ft in (2.5 m) |
| Paving Width Maximum | 19.7 ft in (6 m) |
Service Refill Capacities
| Cooling System | 8 gal (30.1 L) |
| Fuel Tank Capacity | 37 gal (140 L) |
| Hydraulic Oil Tank | 41 gal (155.1 L) |
Drive System
| Maximum Paving Speed | 104.99 ft/min |
| Maximum Travel Speed | 2.8 mph (4.6 km/h) |
Hopper
| Hopper Capacity | 370.8 ft |
