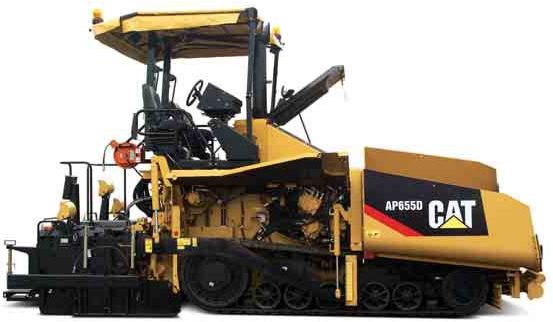

Caterpillar AP655D
Browse All Caterpillar or Asphalt Paver Models
Contents:
Dimensions
| Transport Width | 10.86 ft in (3310 mm) |
| Transport Height | 9.58 ft in (2919.99 mm) |
| Tractor Operating Width | 10.83 ft in (3.31 m) |
| Length - With Push Roller And Largest Screed | 22.3 ft in (6.8 m) |
| Maximum Height | 150.96 in (3834.39 mm) |
| Transport Width - Hoppers Raised - Screed End Gates Attached | 8.67 ft in (2.65 m) |
| Transport Width - Hoppers Raised - Screed End Gates Removed | 8.17 ft in (2.5 m) |
Engine
| Engine Make | 2236 |
| Engine Model | C6.6 with ACERT |
| Gross Power | 174 hp (129.8 kw) |
| Engine Model | Cat C6.6 with ACERT |
Operational
| Operating Weight W/ Screed | 42251.6 lb (19165 kg) |
| Fuel Capacity | 76.9 gal (291 L) |
Hopper/Paver
| Hopper Capacity | 8.6 lb (6.5 kg) |
| Paving Width - Std | 8.4 ft in (2550 mm) |
| Paving Width - Max | 26.3 ft in (8000 mm) |
Weights
| Maximum Operating Weight | 42252 lb (19165.2 kg) |
Operating Specifications
| Maximum Travel Speed | 9 mph (14.5 km/h) |
| Hopper Capacity | 230 ft |
| Paving Width Minimum | 6 ft in (1.9 m) |
| Paving Width Maximum | 26.3 ft in (8.1 m) |
| Truck Entry Width | 10.5 ft in (3.3 m) |
| Truck Dump Height | 24 in (609.6 mm) |
| Standard Paving Width | 2.55-5.0 m (8.17-16.40 ft) |
Service Refill Capacities
| Fuel Tank Capacity | 77 gal (291.5 L) |
