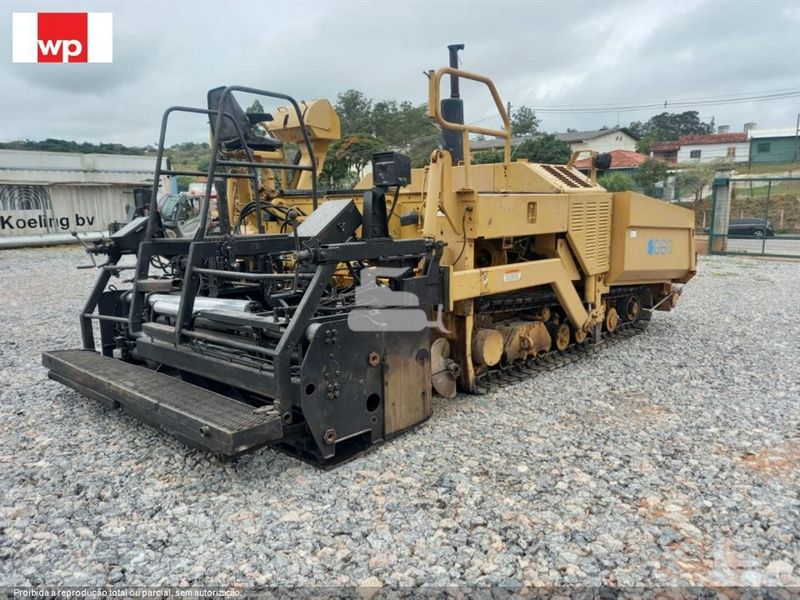

Caterpillar AP1050B
Browse All Caterpillar or Asphalt Paver Models
Contents:
Dimensions
| Length W/ Screed | 21.59 ft in (6579 mm) |
| Transport Width | 10 ft in (3048 mm) |
| Length Of Track On Ground | 8.92 ft in (2718 mm) |
| Track Width | 14.02 in (356 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2236 |
| Engine Model | 3116T |
| Gross Power | 174 hp (129.8 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 402.8 cu in (6.6 L) |
Operational
| Operating Weight W/O Screed | 34800 lb (15785 kg) |
| Fuel Capacity | 75.1 gal (284 L) |
| Hydraulic System Fluid Capacity | 40 gal (151.4 L) |
| Cooling System Fluid Capacity | 8.4 gal (31.5 L) |
Hopper/Paver
| Hopper Capacity | 8 lb (6.1 kg) |
| Paving Width - Std | 8 ft in (2438 mm) |
| Paving Width - Max | 30 ft in (9144 mm) |
| Paving Speed - Max | 215.3 ft/min (65.6 m/min) |
| Travel Speed - Max | 5 mph (8 km/h) |
| Auger Diameter | 16 in (406 mm) |
