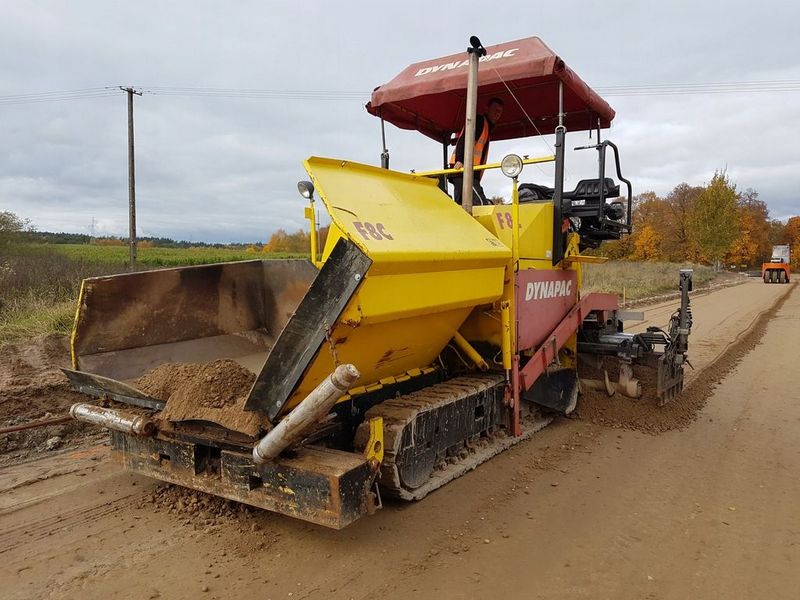

Dynapac F8C
Browse All Dynapac or Asphalt Paver Models
Contents:
Dimensions
| Length W/ Screed | 18.15 ft in (5530 mm) |
| Transport Width | 6.57 ft in (2000 mm) |
| Transport Height | 10.95 ft in (3335 mm) |
| Width W/ Hopper Open | 9.65 ft in (2940 mm) |
Engine
| Engine Make | 2349 |
| Engine Model | BF 4M 2012 |
| Gross Power | 104.6 hp (78 kw) |
Operational
| Operating Weight W/ Screed | 25000 lb (11339.9 kg) |
Hopper/Paver
| Hopper Capacity | 4.9 lb (3.7 kg) |
| Paving Width - Std | 6.6 ft in (2000 mm) |
| Paving Width - Max | 20.1 ft in (6100 mm) |
| Paving Thickness - Max | 10.7 in (270 mm) |
| Paving Speed - Max | 73.5 ft/min (22.4 m/min) |
| Travel Speed - Max | 2.8 mph (4.4 km/h) |
| Auger Diameter | 12.3 in (310 mm) |
