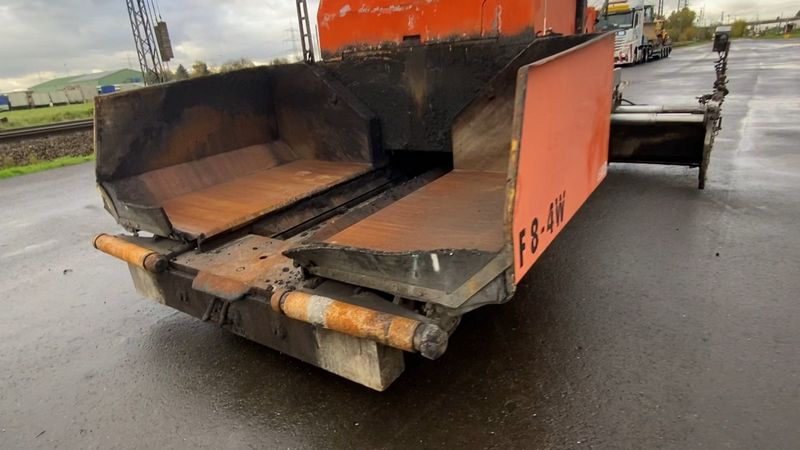

Dynapac F8W
Browse All Dynapac or Asphalt Paver Models
Contents:
Dimensions
| Length W/ Screed | 17.31 ft in (5275 mm) |
| Transport Width | 6.57 ft in (2000 mm) |
| Transport Height | 10.95 ft in (3335 mm) |
| Width W/ Hopper Open | 9.98 ft in (3040 mm) |
Engine
| Engine Make | 2349 |
| Engine Model | BF4M 2012 |
| Gross Power | 88.6 hp (66 kw) |
Operational
| Operating Weight W/ Screed | 19600 lb (8890.5 kg) |
Hopper/Paver
| Hopper Capacity | 5.3 lb (4 kg) |
| Paving Width - Std | 6.6 ft in (2000 mm) |
| Paving Width - Max | 18.1 ft in (5500 mm) |
| Paving Thickness - Max | 10.7 in (270 mm) |
| Paving Speed - Max | 114.9 ft/min (35 m/min) |
| Travel Speed - Max | 12.5 mph (20 km/h) |
| Auger Diameter | 12.3 in (310 mm) |
