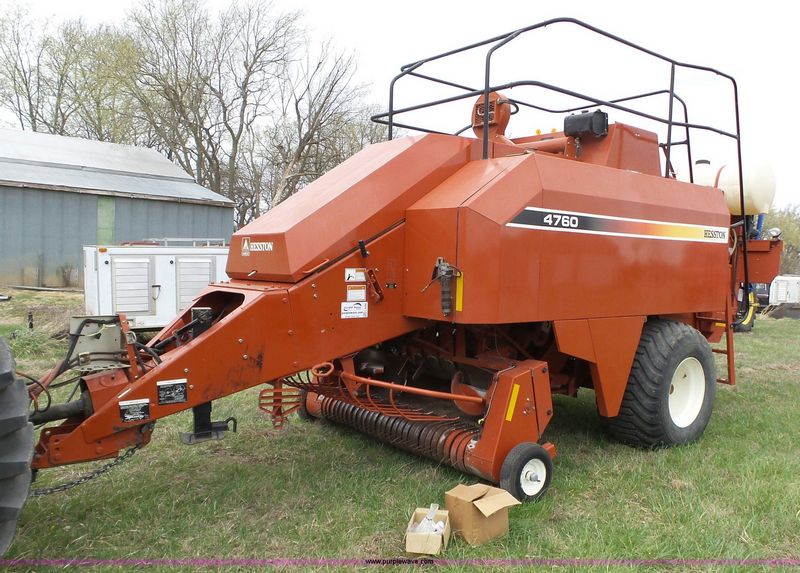

Hesston 4760
Contents:
Baler Pickup
| Overall Width | 7.6 ft in (2.32 m) |
| Number Of Bars | 4 |
| Number Of Tines | 112 |
| Tine To Tine Width | 5.85 ft in (1.79 m) |
| Lift Type | Hydraulic Cylinder |
Dimensions
| Overall Length | 29.56 ft in (9009 mm) |
| Overall Width | 8.34 ft in (2540 mm) |
| Overall Height | 10.38 ft in (3162 mm) |
| Tractor Pto Power Required | 100 hp (74.57 kw) |
| Weight | 13340.18 lb (6051 kg) |
Bale Size
| Bale Height | 2.9 ft in (875 mm) |
| Bale Width | 2.7 ft in (800 mm) |
| Bale Length - Max | 8.3 ft in (2500 mm) |
Feeding Chamber
| Packer Type | Fork Type w/4 Hard Surfaced Tines |
| Stuffer Type | Fork Type |
Plunger
| Spm | 40.97 |
| Stroke Length | 27.95 in. |
| Bearing Type | tapered roller and spherical |
Wrapping System
| Twine Type | 4 Double Knot Type |
| Twine Ball Capacity | 20 |
