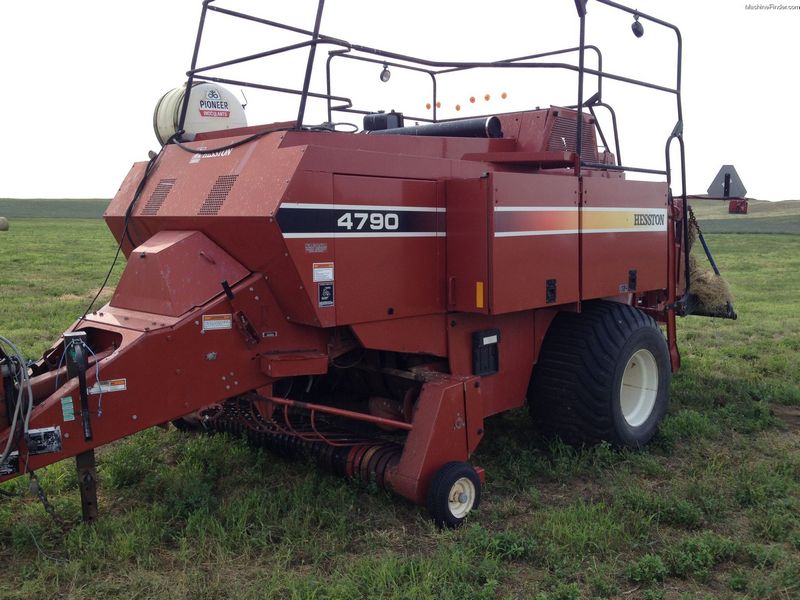

Hesston 4790
Contents:
Baler Pickup
| Overall Width | 8.74 ft in (2.67 m) |
| Number Of Bars | 4 |
| Number Of Tines | 120 |
| Tine To Tine Width | 6.72 ft in (2.05 m) |
| Lift Type | Hydraulic Cylinder |
Dimensions
| Overall Length | 23.75 ft in (7239 mm) |
| Overall Width | 9.76 ft in (2972 mm) |
| Overall Height | 11.67 ft in (3556 mm) |
| Tractor Pto Power Required | 130 hp (96.95 kw) |
| Weight | 17592.89 lb (7980 kg) |
Bale Size
| Bale Height | 2.9 ft in (875 mm) |
| Bale Width | 4 ft in (1200 mm) |
| Bale Length - Max | 8.3 ft in (2500 mm) |
Feeding Chamber
| Packer Type | Fork Type w/6 Hard Surfaced Tines |
| Stuffer Type | Fork Type |
Plunger
| Spm | 42.65 |
| Stroke Length | 27.95 in. |
| Bearing Type | Tapered Roller sealed, ball bearing rollers sealed |
Wrapping System
| Twine Type | 6 Double Knot Type |
| Twine Ball Capacity | 30 |
