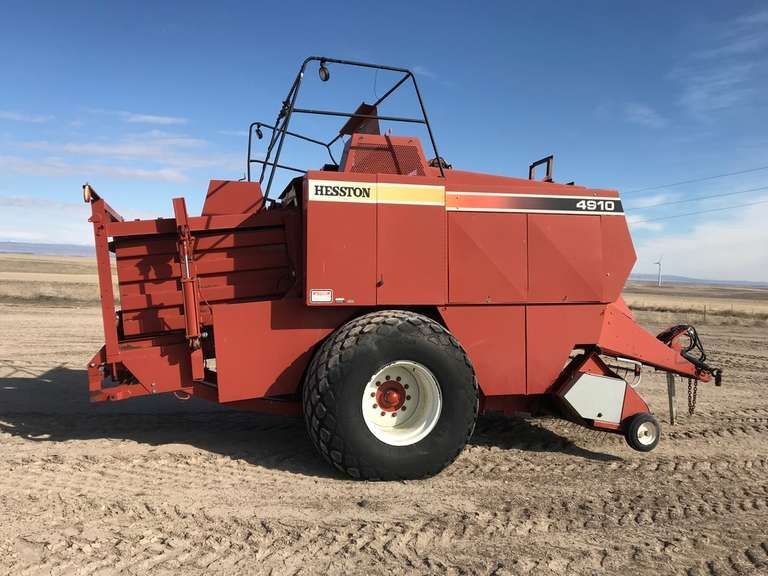

Hesston 4910
Contents:
Baler Pickup
| Overall Width | 8.13 ft in (2.48 m) |
| Number Of Bars | 5 |
| Number Of Tines | 120 |
| Tine To Tine Width | 6.49 ft in (1.98 m) |
| Lift Type | Hydraulic Cylinder |
Dimensions
| Overall Length | 23.73 ft in (7230 mm) |
| Overall Width | 10.47 ft in (3190 mm) |
| Overall Height | 12.08 ft in (3680 mm) |
| Tractor Pto Power Required | 120 hp (89.49 kw) |
| Weight | 18607.02 lb (8440 kg) |
Bale Size
| Bale Height | 4.2 ft in (1270 mm) |
| Bale Width | 3.9 ft in (1180 mm) |
| Bale Length - Max | 9 ft in (2743 mm) |
Feeding Chamber
| Packer Type | Fork Type w/ 6 Hard Surfaced Tines |
| Stuffer Type | Fork Type w/ 6 Tines |
Plunger
| Spm | 25.4 |
| Stroke Length | 30.7 in. |
| Bearing Type | Taper Roller Bearings Sealed, Ball Bearing Rollers Sealed |
Wrapping System
| Twine Type | 6 Double Knot Type |
| Twine Ball Capacity | 24 |
