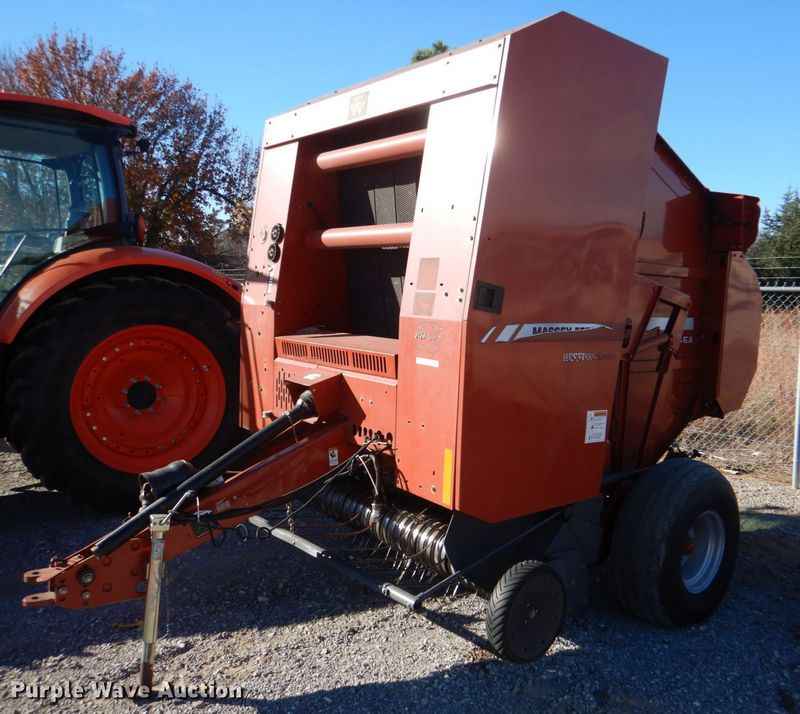

Massey Ferguson 2745
Browse All Massey Ferguson or Baler Models
Contents:
Baler Pickup
| Overall Width | 6.5 ft in (1.99 m) |
| Number Of Tines | 96 |
| Tine To Tine Width | 4.99 ft in (1.52 m) |
| Number Of Bars | 4 |
Dimensions
| Overall Length | 12.37 ft in (3768 mm) |
| Overall Width | 8.55 ft in (2604 mm) |
| Overall Height | 8.59 ft in (2616 mm) |
| Tractor Pto Power Required | 55 hp (41.02 kw) |
| Weight | 5720 lb (2594.55 kg) |
Bale Size
| Bale Width | 3.9 ft in (1182 mm) |
| Bale Diameter - Min | 2.5 ft in (762 mm) |
| Bale Diameter - Max | 5 ft in (1524 mm) |
| Bale Weight - Min | 1140 lb (517.1 kg) |
| Bale Weight - Max | 2000 lb (907.2 kg) |
Bale Chamber
| Number Of Belts | 6 Laced, WedgeGrip Pattern |
| Belt Width | 7 in (17.8 cm) |
Wrapping System
| Twine Type | AutoTie - Electric Actuated |
| Twine Ball Capacity | 8 |
