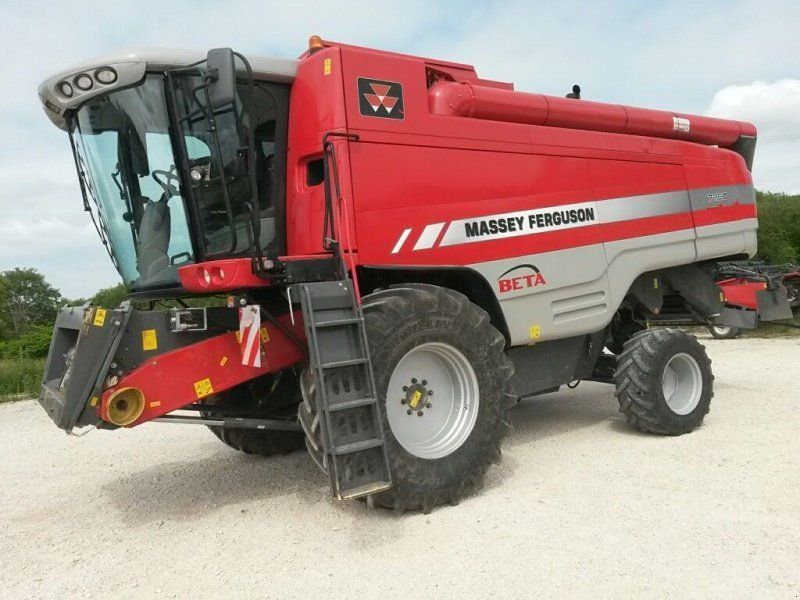

Massey Ferguson BETA 7260
Browse All Massey Ferguson or Combine Models
Contents:
Dimensions
| Overall Length | 27.47 ft in (8370 mm) |
| Width Over Tires | 11.77 ft in (3585 mm) |
Engine
| Engine Make | 2367 |
| Engine Model | 74 ETA |
| Power | 275 hp (205.1 kw) |
| Displacement | 451.6 cu in (7.4 L) |
Operational
| Operating Weight W/O Attachment | 27447.6 lb (12450 kg) |
| Fuel Capacity | 118.9 gal (450 L) |
| Transmission Type | hydrostatic |
| Number Of Gears | 4 |
Threshing
| Rotor Diameter | 23.7 in (600 mm) |
| Rotor Length | 52.8 in (1340 mm) |
| Rotor Speed - Low | 380 rpm |
| Rotor Speed - High | 1210 rpm |
| Concave Area | 1286.6 in2 (0.9 m2) |
Separating
| Separator Type | 5 straw walkers rotary separator |
| Separator Length | 51.6 in (1310 mm) |
| Separating Area | 10385.1 in2 (6.7 m2) |
Cleaning System
| Total Cleaning Area | 7238.6 in2 (4.7 m2) |
| Cleaning Fan Speed - Low | 350 rpm |
| Cleaning Fan Speed - High | 1050 rpm |
Grain Handling
| Grain Tank Capacity | 255.4 bu (9000 L) |
| Unloading Auger Length | 16.5 ft in (5 m) |
| Unloading Speed | 3 bu/sec (105 L/sec) |
| Unloading Discharge Height | 14.6 ft in (4.5 m) |
