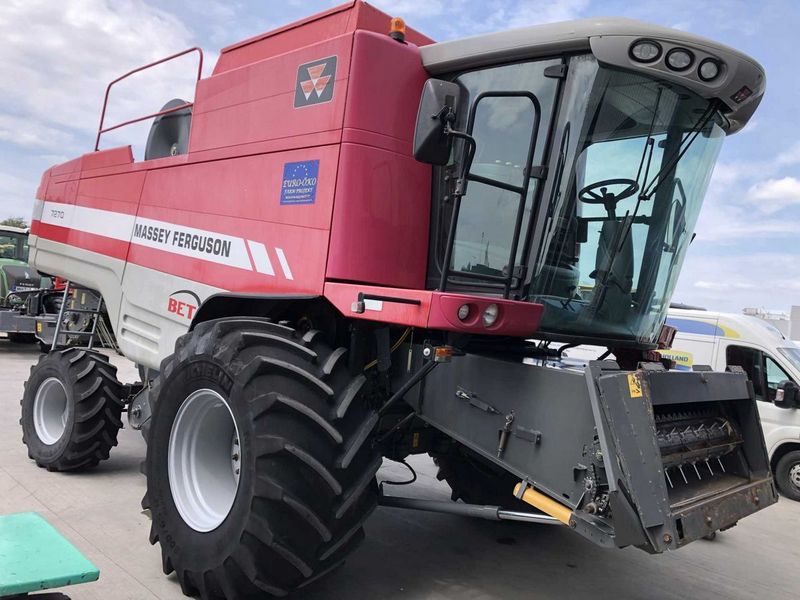

Massey Ferguson BETA 7270
Browse All Massey Ferguson or Combine Models
Contents:
Dimensions
| Overall Length | 27.47 ft in (8370 mm) |
| Width Over Tires | 11.77 ft in (3585 mm) |
Engine
| Engine Make | 2367 |
| Engine Model | 84 ETA |
| Power | 305 hp (227.5 kw) |
| Displacement | 512.6 cu in (8.4 L) |
Operational
| Operating Weight W/O Attachment | 30093.1 lb (13650 kg) |
| Fuel Capacity | 118.9 gal (450 L) |
| Transmission Type | hydrostatic |
| Number Of Gears | 4 |
Threshing
| Rotor Diameter | 23.7 in (600 mm) |
| Rotor Length | 63 in (1600 mm) |
| Rotor Speed - Low | 430 rpm |
| Rotor Speed - High | 1310 rpm |
| Concave Area | 1534.6 in2 (1 m2) |
Separating
| Separator Type | 6 straw walkers rotary separator |
| Separator Length | 61.5 in (1560 mm) |
| Separating Area | 12400.1 in2 (8 m2) |
Cleaning System
| Total Cleaning Area | 8649.1 in2 (5.6 m2) |
| Cleaning Fan Speed - Low | 350 rpm |
| Cleaning Fan Speed - High | 1050 rpm |
Grain Handling
| Grain Tank Capacity | 255.4 bu (9000 L) |
| Unloading Auger Length | 16.5 ft in (5 m) |
| Unloading Speed | 3 bu/sec (105 L/sec) |
| Unloading Discharge Height | 14.6 ft in (4.5 m) |
