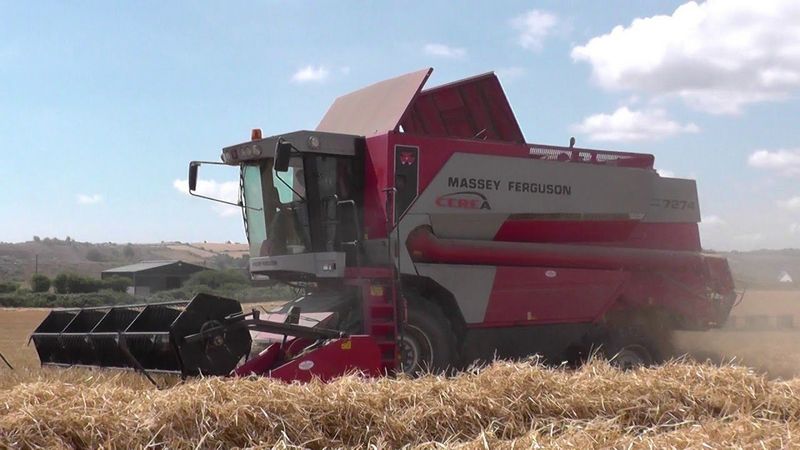

Massey Ferguson MF 7274 CEREA
Browse All Massey Ferguson or Combine Models
Contents:
Dimensions
| Overall Length | 32.88 ft in (10020 mm) |
| Width Over Tires | 12.54 ft in (3820 mm) |
| Height To Top Of Isomount Cab | 13.13 ft in (4000 mm) |
Engine
| Engine Model | 645 DSBAEL |
| Power | 340 hp (253.6 kw) |
| Displacement | 512.6 cu in (8.4 L) |
| Aspiration | turbocharged/intercooler |
Operational
| Operating Weight W/O Attachment | 30423.8 lb (13800 kg) |
| Fuel Capacity | 198.2 gal (750 L) |
| Transmission Type | hydrostatic |
| Number Of Gears | 4 |
Threshing
| Rotor Diameter | 23.7 in (600 mm) |
| Rotor Length | 66.2 in (1680 mm) |
| Rotor Speed - Low | 370 rpm |
| Rotor Speed - High | 1080 rpm |
| Concave Area | 1643.1 in2 (1.1 m2) |
Separating
| Separator Type | 8 straw walkers |
| Separating Area | 15345.1 in2 (9.9 m2) |
Cleaning System
| Total Cleaning Area | 8215.1 in2 (5.3 m2) |
| Cleaning Fan Speed - Low | 450 rpm |
| Cleaning Fan Speed - High | 1100 rpm |
Grain Handling
| Grain Tank Capacity | 269.6 bu (9500 L) |
| Unloading Speed | 2.5 bu/sec (86.4 L/sec) |
| Unloading Discharge Height | 13.8 ft in (4.2 m) |
