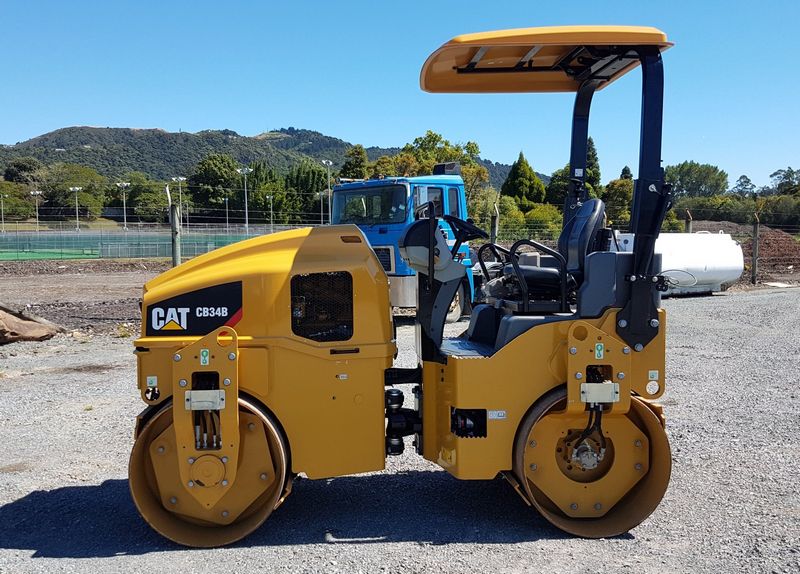

Caterpillar CB34B
Browse All Caterpillar or Compactor Models
Contents:
Dimensions
| Ground Clearance | 11 ft in (3352.8 mm) |
| Wheelbase | 81 ft in (24688.8 mm) |
| Maximum Machine Height | 109 in (2768.6 mm) |
| Overall Length | 9.42 ft in (2870.2 mm) |
| Overall Width | 4.59 ft in (1397 mm) |
| Drum Diameter | 32 in (812.8 mm) |
| Wheel Base | 6.75 ft in (0.18 m) |
Operating Specifications
| Ground Clearance | 0.92 ft in (0.03 m) |
| Standard Compaction Width | 51 in (1295.41 mm) |
| Static Linear Load | 80 lb (36.29 kg) |
| Travel Speed - Maximum | 8 mph (12.88 km/h) |
| Turning Radius - Inside Drum Edge | 116.4 in (2956.56 mm) |
| Curb Clearance | 20 in (508 mm) |
Engine
| Engine Make | 2236 |
| Engine Model | C2.2 |
| Gross Power | 48.8 hp (36.4 kw) |
| Engine Model | C2.2 |
Operational
| Operating Weight | 8157 lb (3700 kg) |
| Fuel Capacity | 24 gal (90.9 L) |
Drum
| Drum Width | 51 in (1295.4 mm) |
Transmission
| Max Speed | 8 mph (12.9 km/h) |
Weights
| Operating Weight | 8157 lb (3700 kg) |
| Maximum Weight At Front Drum | 3974 lb (1802.6 kg) |
| Maximum Weight At Rear Drum | 4180 lb (1896.1 kg) |
Service Refill Capacities
| Fuel Tank Capacity | 24 gal (90.9 L) |
| Water Spray Tank Capacity | 81 gal (306.7 L) |
Vibratory System
| Nominal Amplitude - High | 0.1 in (0.6 mm) |
| Centrifugal Force Per Drum - Maximum | 7104 lb (3222.4 kg) |
| Frequency | 55/48 Hz (3,300/2800 vpm) |
| Centrifugal Force Per Drum - Minimum | 5418 lb (2457.6 kg) |
