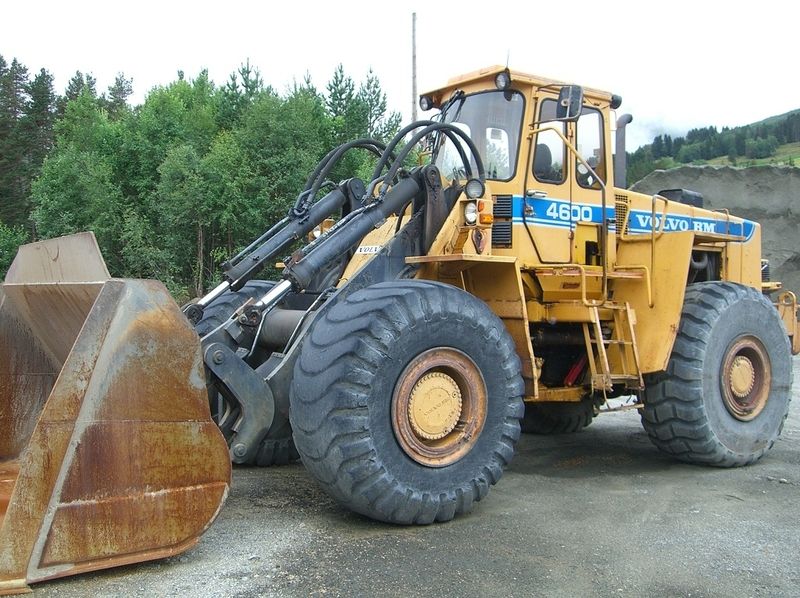

Volvo 4600
Contents:
Dimensions
| Length With Blade On Ground | 27.14 ft in (8270 mm) |
| Ground Clearance | 1.71 ft in (520 mm) |
| Width Over Wheels | 10.04 ft in (3060 mm) |
| Height To Top Of Cab | 11.65 ft in (3550 mm) |
| Wheelbase | 11.65 ft in (3550 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2244 |
| Engine Model | TD 100 G |
| Gross Power | 264 hp (196.9 kw) |
| Net Power | 252 hp (188 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 585.9 cu in (9.6 L) |
| Max Torque | 709.6 lb ft (962 Nm) |
| Torque Measured @ | 1400 rpm |
| Aspiration | turbo |
Operational
| Operating Weight | 58510.7 lb (26540 kg) |
| Fuel Capacity | 95.2 gal (360 L) |
| Tire Type | trapazoidal pads |
| Hydraulic System Fluid Capacity | 79.3 gal (300 L) |
| Engine Oil Capacity | 8.2 gal (31 L) |
| Cooling System Fluid Capacity | 13.3 gal (50 L) |
| Transmission Fluid Capacity | 10.6 gal (40 L) |
| Tire Size | 26.5R25 |
| Static Tipping Load | 33730.8 lb (15300 kg) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 45 amps |
Transmission
| Transmission Type | power shift |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
Wheels
| Front Wheels Drum Width | 29.6 in (750 mm) |
| Front Wheels Drum Diameter | 55.2 in (1400 mm) |
| Rear Wheels Drum Width | 29.6 in (750 mm) |
| Rear Wheels Drum Diameter | 55.2 in (1400 mm) |
Blade
| Blade Capacity | 5 yd3 (3.8 m3) |
| Width | 10.5 ft in (3200 mm) |
