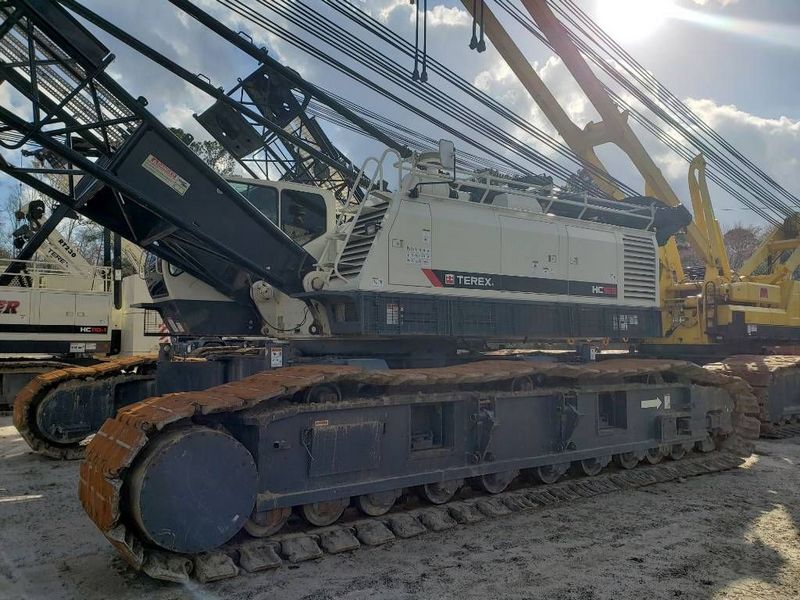

Terex HC165
Browse All Terex or Crawler Crane Models
Contents:
Engine
| Engine Make | Cummins |
| Engine Model | QSC8.3 |
| Gross Power | 310 hp (231.2 kw) |
| Power Measured @ | 2000 rpm |
Operational
| Fuel Capacity | 112 gal (424 L) |
| Hydraulic System Fluid Capacity | 132 gal (499.7 L) |
Transmission
| Max Speed | 0.6 mph (0.9 km/h) |
Boom
| Max Lift Capacity | 35274 lb (16000 kg) |
| Swing Speed | 2 rpm |
Dimensions
| Gradeability | 30 % |
| Transport Width | 20.8 ft in (6339.9 mm) |
| Transport Height | 12.4 ft in (3779.6 mm) |
| Ground Clearance | 1.1 ft in (335.3 mm) |
