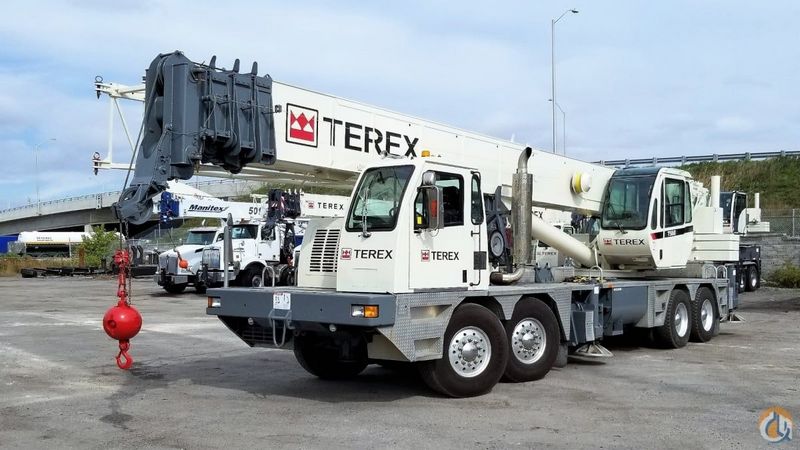

Terex T560-1
Browse All Terex or Hydraulic Truck Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 35 ft in (10.67 m) |
| Max Height @ Max Raise Angle - No Jib | 110 ft in (33.53 m) |
| Max Elevating Angle | 76 degrees |
| Number Of Sections | 4 |
| Max Lift Capacity | 119049.62 lb (54000 kg) |
Dimensions
| Transport Length | 43.84 ft in (13360 mm) |
| Transport Width | 8.4 ft in (2560 mm) |
| Transport Height | 11.88 ft in (3620 mm) |
| Ground Clearance | 1.35 ft in (410 mm) |
| Width W/ Outriggers Extended | 23 ft in (7010 mm) |
| Carrier Length | 37.28 ft in (11360 mm) |
| Upper Structure Tail Swing Radius | 11.98 ft in (3650 mm) |
Carrier Engine
| Make | Terex |
| Gross Power | 455 hp (339.3 kw) |
| Power Measured @ | 1800 rpm |
| Displacement | 775.1 cu in (12.7 L) |
Transmission
| Max Speed - Forward | 65.3 mph (105 km/h) |
