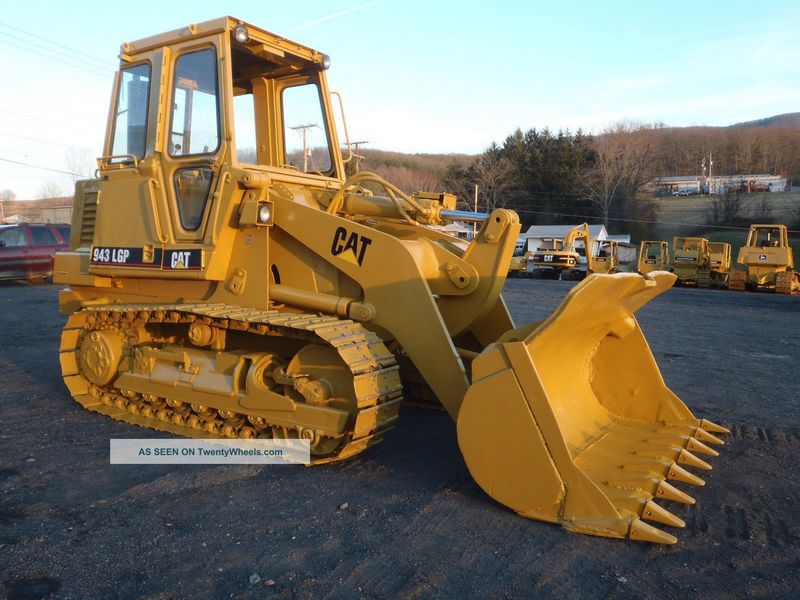

Caterpillar 943 LGP
Browse All Caterpillar or Crawler Loader Models
Contents:
Dimensions
| Length With Bucket On Ground | 17.81 ft in (5426 mm) |
| Ground Clearance | 1.11 ft in (336 mm) |
| Width To Outside Of Tracks | 6.76 ft in (2060 mm) |
| Height To Top Of Cab | 9.91 ft in (3018 mm) |
| Clearance At Full Height And Dump | 8.77 ft in (2672 mm) |
| Reach At Dump Height | 2.83 ft in (861 mm) |
Undercarriage
| Track Gauge | 66.93 in (1700 mm) |
| Length Of Track On Ground | 7.06 ft in (2149 mm) |
| Number Of Track Rollers Per Side | 6 |
| Ground Contact Area | 3069.01 in2 (1.98 m2) |
| Ground Pressure | 8.48 psi (58.4 kPa) |
| Track Shoe Width | 18.12 in (460 mm) |
Engine
| Engine Make | 2236 |
| Engine Model | 3204 |
| Net Power | 80 hp (59.7 kw) |
| Displacement | 317.4 cu in (5.2 L) |
Operational
| Operating Weight | 26208.6 lb (11888 kg) |
| Fuel Capacity | 42.1 gal (159 L) |
| Hydraulic System Fluid Capacity | 15.4 gal (58 L) |
| Static Tipping Load | 17707.6 lb (8032 kg) |
| Breakout Force - Std Bucket | 21139 lb (94.1 kN) |
| Bucket Capacity - Struck | 1.3 yd3 (1 m3) |
| Bucket Capacity - Heaped | 1.6 yd3 (1.2 m3) |
| Max Speed | 6 mph (9.5 km/h) |
Hydraulic
| Raise Time | 7.2 sec |
| Dump Time | 1.6 sec |
| Lower Time | 2.2 sec |
