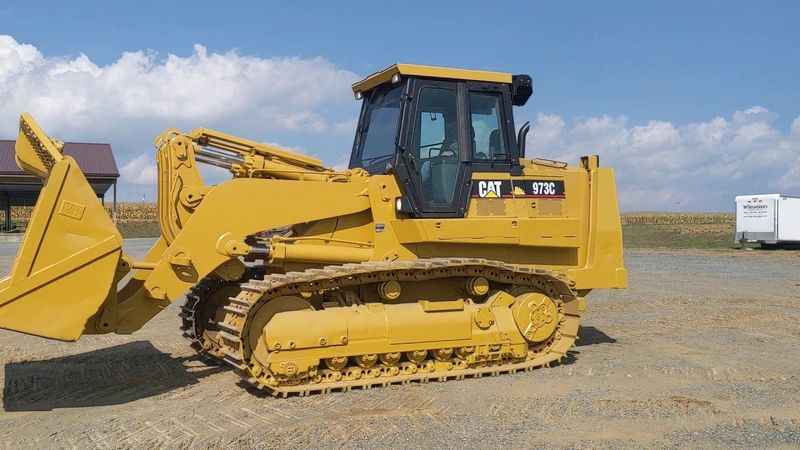

Caterpillar 973
Browse All Caterpillar or Crawler Loader Models
Contents:
Dimensions
| Length With Bucket On Ground | 23.37 ft in (7123 mm) |
| Ground Clearance | 1.5 ft in (456 mm) |
| Width To Outside Of Tracks | 8.47 ft in (2580 mm) |
| Height To Top Of Cab | 11.24 ft in (3423 mm) |
| Clearance At Full Height And Dump | 10.96 ft in (3340 mm) |
| Reach At Dump Height | 4.36 ft in (1328 mm) |
Undercarriage
| Track Gauge | 81.89 in (2080 mm) |
| Length Of Track On Ground | 9.58 ft in (2917 mm) |
| Number Of Track Rollers Per Side | 7 |
| Ground Contact Area | 4526.01 in2 (2.92 m2) |
| Ground Pressure | 12.04 psi (83 kPa) |
| Track Shoe Width | 19.69 in (500 mm) |
Engine
| Engine Make | 2236 |
| Engine Model | 3306 |
| Net Power | 210 hp (156.6 kw) |
| Displacement | 640.8 cu in (10.5 L) |
Operational
| Operating Weight | 54899.6 lb (24902 kg) |
| Fuel Capacity | 94.1 gal (356 L) |
| Hydraulic System Fluid Capacity | 15.9 gal (60 L) |
| Static Tipping Load | 37011.3 lb (16788 kg) |
| Breakout Force - Std Bucket | 47981 lb (213.5 kN) |
| Bucket Capacity - Struck | 3.2 yd3 (2.5 m3) |
| Bucket Capacity - Heaped | 3.7 yd3 (2.8 m3) |
| Max Speed | 6.5 mph (10.3 km/h) |
Hydraulic
| Raise Time | 7.4 sec |
| Dump Time | 1.4 sec |
| Lower Time | 2.6 sec |
