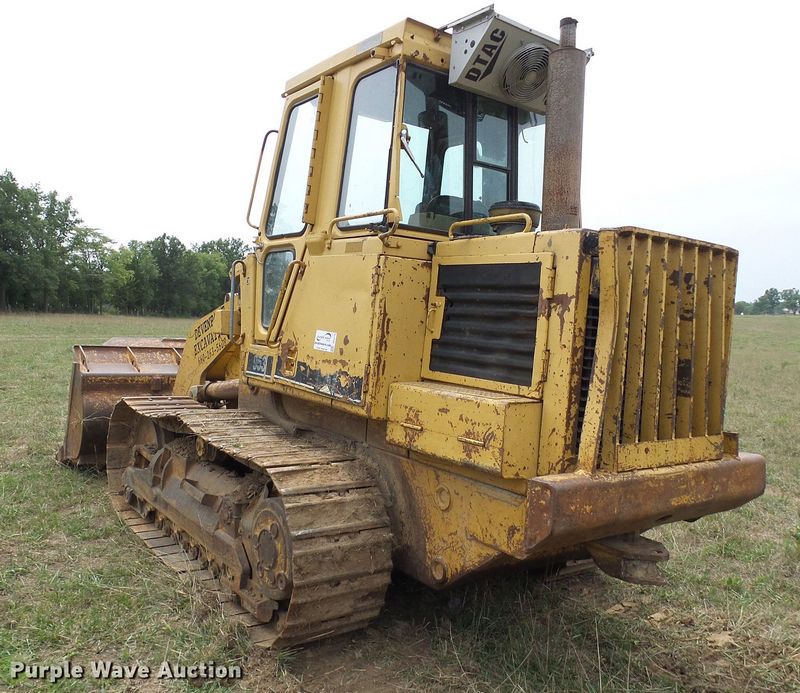

Caterpillar 953 LGP
Browse All Caterpillar or Crawler Loader Models
Contents:
Dimensions
| Length With Bucket On Ground | 19.25 ft in (5867 mm) |
| Ground Clearance | 1.24 ft in (377 mm) |
| Width To Outside Of Tracks | 7.16 ft in (2180 mm) |
| Height To Top Of Cab | 10.1 ft in (3078 mm) |
| Clearance At Full Height And Dump | 9.5 ft in (2894 mm) |
| Reach At Dump Height | 3.34 ft in (1017 mm) |
Undercarriage
| Track Gauge | 70.87 in (1800 mm) |
| Length Of Track On Ground | 7.53 ft in (2295 mm) |
| Number Of Track Rollers Per Side | 6 |
| Ground Contact Area | 3565.01 in2 (2.3 m2) |
| Ground Pressure | 8.79 psi (60.6 kPa) |
| Track Shoe Width | 19.69 in (500 mm) |
Engine
| Engine Make | 2236 |
| Engine Model | 3204 |
| Net Power | 110 hp (82.1 kw) |
| Displacement | 317.4 cu in (5.2 L) |
Operational
| Operating Weight | 31662.8 lb (14362 kg) |
| Fuel Capacity | 50.8 gal (192 L) |
| Hydraulic System Fluid Capacity | 15.4 gal (58 L) |
| Static Tipping Load | 19288.3 lb (8749 kg) |
| Breakout Force - Std Bucket | 26395 lb (117.5 kN) |
| Bucket Capacity - Struck | 1.7 yd3 (1.3 m3) |
| Bucket Capacity - Heaped | 2 yd3 (1.5 m3) |
| Max Speed | 6.5 mph (10.4 km/h) |
Hydraulic
| Raise Time | 7.4 sec |
| Dump Time | 1.5 sec |
| Lower Time | 3 sec |
