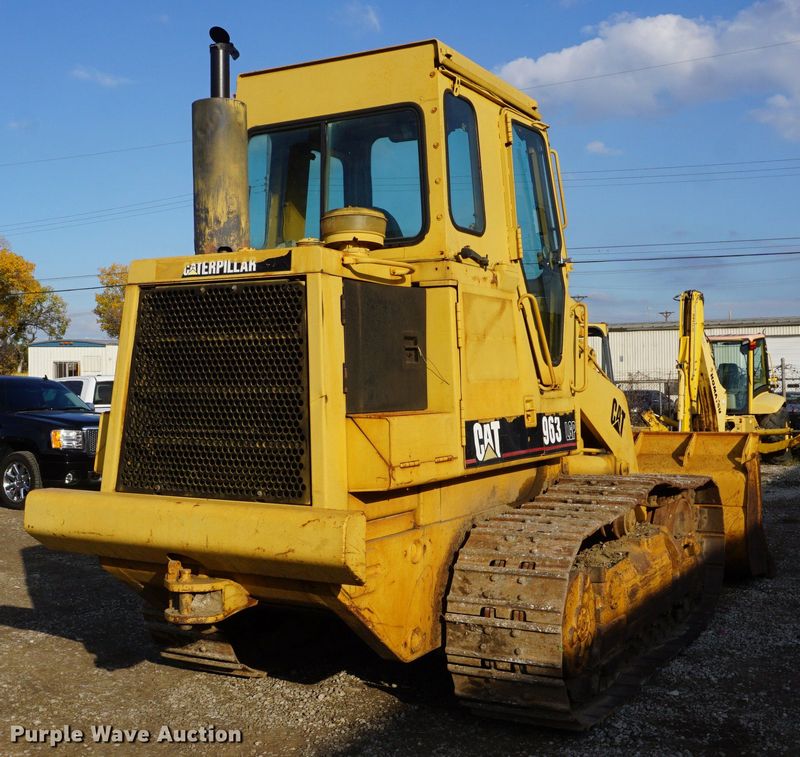

Caterpillar 963 LGP
Browse All Caterpillar or Crawler Loader Models
Contents:
Dimensions
| Length With Bucket On Ground | 20.83 ft in (6346 mm) |
| Ground Clearance | 1.45 ft in (439 mm) |
| Width To Outside Of Tracks | 7.88 ft in (2400 mm) |
| Height To Top Of Cab | 10.83 ft in (3300 mm) |
| Clearance At Full Height And Dump | 10.3 ft in (3137 mm) |
| Reach At Dump Height | 3.84 ft in (1168 mm) |
Undercarriage
| Track Gauge | 72.84 in (1850 mm) |
| Length Of Track On Ground | 8.06 ft in (2454 mm) |
| Number Of Track Rollers Per Side | 6 |
| Ground Contact Area | 4185.01 in2 (2.7 m2) |
| Ground Pressure | 9.75 psi (67.2 kPa) |
| Track Shoe Width | 21.66 in (550 mm) |
Engine
| Engine Make | 2236 |
| Engine Model | 3304 |
| Net Power | 150.2 hp (112 kw) |
| Displacement | 427.2 cu in (7 L) |
Operational
| Operating Weight | 41092 lb (18639 kg) |
| Fuel Capacity | 69 gal (261 L) |
| Hydraulic System Fluid Capacity | 15.9 gal (60 L) |
| Static Tipping Load | 27165.4 lb (12322 kg) |
| Breakout Force - Std Bucket | 38227 lb (170.1 kN) |
| Bucket Capacity - Struck | 2.2 yd3 (1.7 m3) |
| Bucket Capacity - Heaped | 2.7 yd3 (2 m3) |
| Max Speed | 6.3 mph (10.1 km/h) |
Hydraulic
| Raise Time | 6.2 sec |
| Dump Time | 1.3 sec |
| Lower Time | 2.3 sec |
