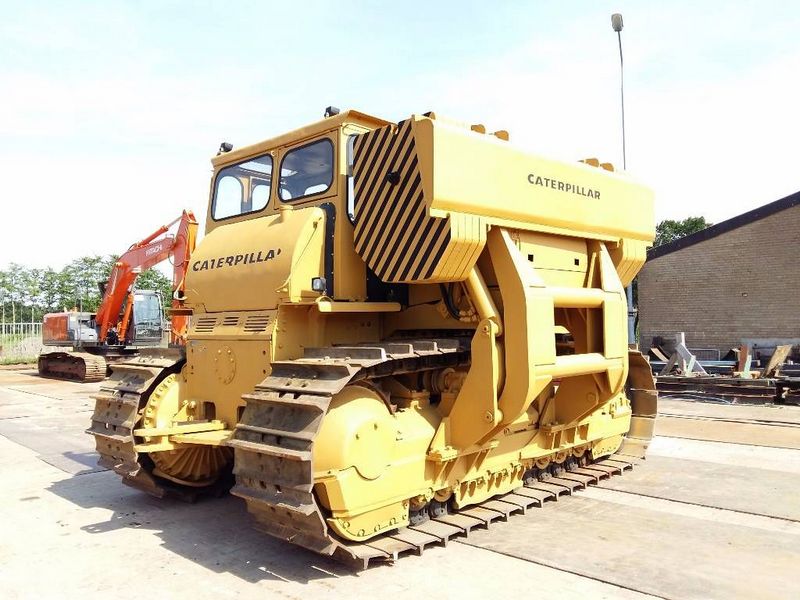

Caterpillar 594
Browse All Caterpillar or Crawler Pipe Layer Models
Contents:
Boom
| Max Lift Capacity | 200000 lb (90718.48 kg) |
Dimensions
| Overall Length | 18 ft in (5486.4 mm) |
| Width Over Tracks | 7.5 ft in (2286 mm) |
| Length Of Track On Ground | 11 ft in (3352.8 mm) |
| Height To Top Of Suspended Cab | 10.2 ft in (3108.96 mm) |
Engine
| Net Power | 410 hp (305.8 kw) |
Operational
| Operating Weight | 121474.7 lb (55100 kg) |
| Hydraulic System Fluid Capacity | 31.8 gal (120 L) |
Hydraulic System
| Relief Valve Pressure | 4640 psi (31991.7 kPa) |
| Pump Flow Capacity | 75.6 gal/min (286 L/min) |
