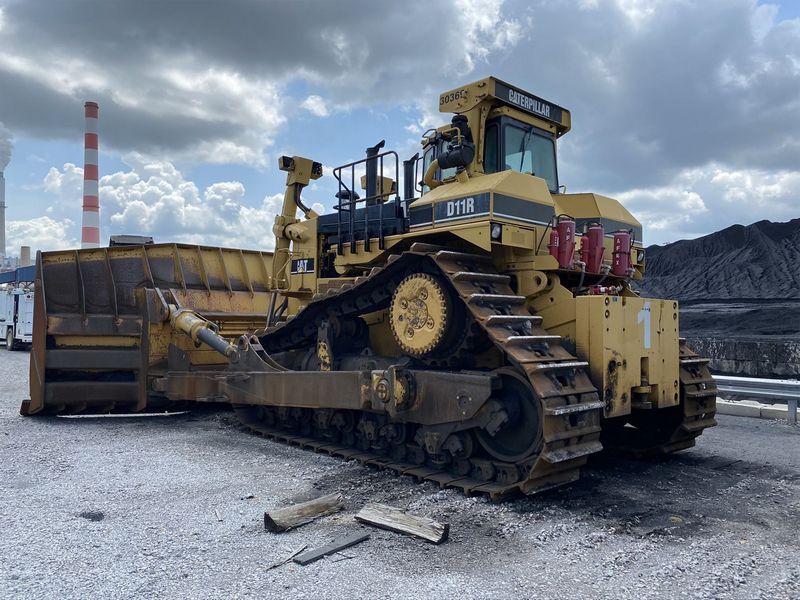

Caterpillar D11R
Browse All Caterpillar or Crawler Tractor Models
Contents:
Dimensions
| Length W/ Blade | 28.97 ft in (8830 mm) |
| Width Over Tracks | 11.82 ft in (3600 mm) |
| Height To Top Of Cab | 15.29 ft in (4660 mm) |
| Length Of Track On Ground | 14.57 ft in (4440 mm) |
| Ground Clearance | 2.05 ft in (622.3 mm) |
| Length W/O Blade | 20.21 ft in (6160 mm) |
Undercarriage
| Track Gauge | 9.5 ft in (2895.6 mm) |
| Standard Shoe Size | 27.96 in (710 mm) |
| Ground Contact Area | 9781 in2 (6.32 m2) |
| Number Of Track Rollers Per Side | 8 |
| Ground Pressure | 23.57 psi (162.51 kPa) |
Engine
| Number Of Cylinders | 8 |
| Engine Make | 2236 |
| Engine Model | 3508B |
| Gross Power | 915 hp (682.4 kw) |
| Net Power | 850 hp (633.9 kw) |
| Power Measured @ | 1800 rpm |
| Displacement | 2105.4 cu in (34.5 L) |
| Aspiration | Turbocharged and Aftercooled |
Operational
| Operating Weight | 225500 lb (102285.1 kg) |
| Fuel Capacity | 388.6 gal (1471 L) |
| Cooling System Fluid Capacity | 61.1 gal (231 L) |
| Engine Oil Capacity | 28.1 gal (106 L) |
| Hydraulic Fluid Capacity | 54.2 gal (205 L) |
| Powertrain Fluid Capacity | 90.9 gal (344 L) |
| Final Drives Fluid Capacity | 8 gal (30 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 100 amps |
Transmission
| Transmission Type | Power shift |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 7.3 mph (11.8 km/h) |
| Max Speed - Reverse | 8.7 mph (14.1 km/h) |
Standard Blade
| Width | 20.9 ft in (6350 mm) |
| Height | 93.4 in (2370 mm) |
| Capacity | 45 yd3 (34.5 m3) |
| Cutting Depth | 30.2 in (766 mm) |
