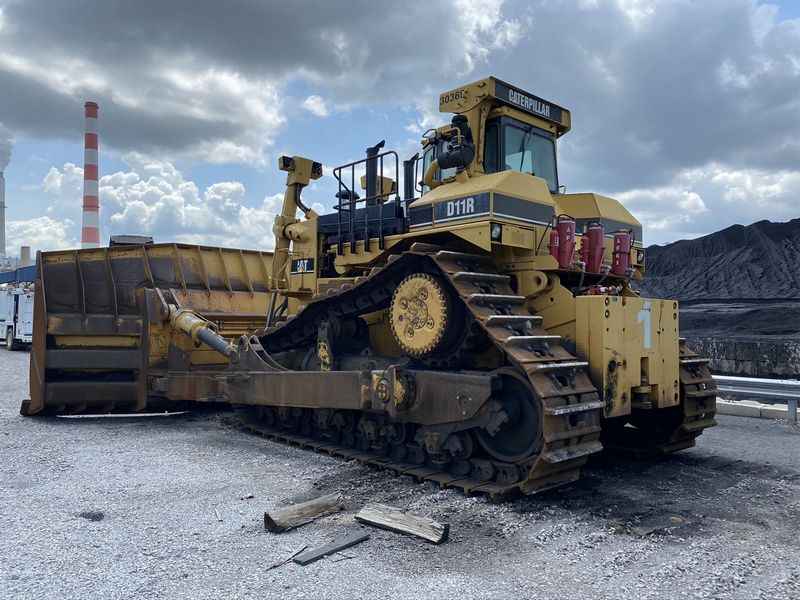

Caterpillar D11R CD
Browse All Caterpillar or Crawler Tractor Models
Contents:
Dimensions
| Length W/ Blade | 27.37 ft in (8341 mm) |
| Width Over Tracks | 11.82 ft in (3602 mm) |
| Height To Top Of Cab | 15.29 ft in (4658 mm) |
| Length Of Track On Ground | 14.59 ft in (4444 mm) |
| Ground Clearance | 2.05 ft in (623 mm) |
| Length W/O Blade | 20.22 ft in (6163 mm) |
Undercarriage
| Track Gauge | 9.51 ft in (2896 mm) |
| Standard Shoe Size | 35.83 in (910 mm) |
| Number Of Shoes Per Side | 41 |
| Ground Pressure | 19.77 psi (136.25 kPa) |
| Ground Contact Area | 12581 in2 (8.12 m2) |
| Number Of Track Rollers Per Side | 8 |
| Track Pitch | 12.52 in (318 mm) |
Engine
| Number Of Cylinders | 8 |
| Engine Make | 2236 |
| Engine Model | 3508B |
| Gross Power | 915 hp (682.4 kw) |
| Net Power | 850 hp (633.9 kw) |
| Power Measured @ | 1800 rpm |
| Displacement | 2105 cu in (34.5 L) |
| Aspiration | Turbocharged and Aftercooled |
Operational
| Operating Weight | 239550 lb (108658.1 kg) |
| Fuel Capacity | 388.6 gal (1471 L) |
| Cooling System Fluid Capacity | 61.1 gal (231 L) |
| Engine Oil Capacity | 28.1 gal (106 L) |
| Hydraulic Fluid Capacity | 54.2 gal (205 L) |
| Powertrain Fluid Capacity | 90.9 gal (344 L) |
| Final Drives Fluid Capacity | 8 gal (30 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 100 amps |
Transmission
| Transmission Type | Power Shift |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 7.3 mph (11.8 km/h) |
| Max Speed - Reverse | 8.7 mph (14.1 km/h) |
Standard Blade
| Width | 22.1 ft in (6706 mm) |
| Height | 128.2 in (3255 mm) |
| Capacity | 57 yd3 (43.6 m3) |
| Cutting Depth | 30.2 in (766 mm) |
